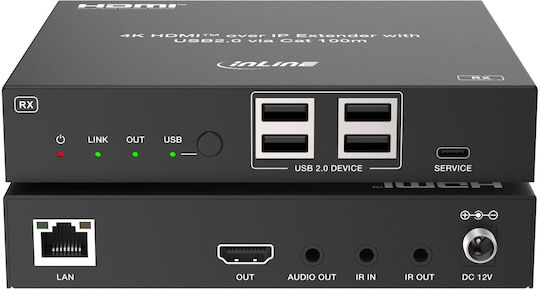

The InLine® KVM Extender over IP enables the transmission of HDMI signals and remote control of systems via an IP network. The set includes a transmitter and receiver unit and supports point-to-point connections as well as connection via suitable network switches. One transmitter can serve multiple receivers.

For permanent installations in dry environments, it features a metal housing. The main features are as follows:

• Maximum resolution: 3840 × 2160 / 60 Hz
• Maximum distance: 100 m
• Network: 1 × RJ45 Gigabit Ethernet
• USB: USB 2.0, host control with USB keyboard and mouse at the receiver
• Audio via HDMI: LPCM 7.1CH, Dolby Digital 5.1, Dolby True HD, Dolby Atmos, DTS-HD Master, DTSX
• Material/color: metal, black
• Operating temperature: 0 °C to +40 °C
• Storage temperature: −20 °C to +60 °C
• Humidity: 20–80%, non-condensing
• Power supply: AC 100–240 V / 50–60 Hz, DC 12.0 V / 1.0 A
• Maximum output power: 12.0 W
• IR frequency: 20 kHz to 60 kHz

Contents: 1 transmitter, 1 receiver, 2 IR cables 1.5 m, USB-A to USB-B cable 1.5 m, 2 DC 12.0 V / 1.0 A power supplies, 4 brackets, 8 M3 × 6 screws, manual (German/English).
