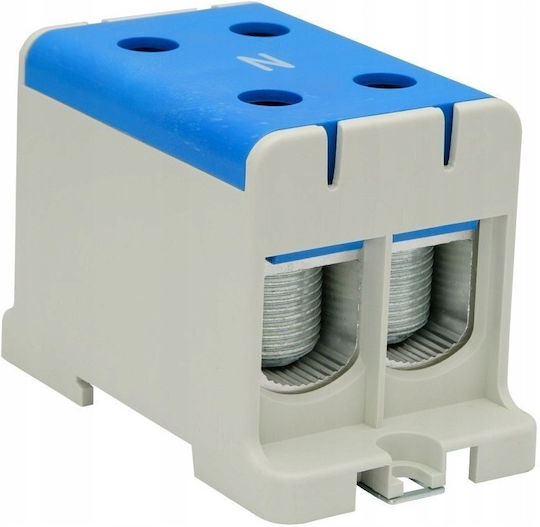

Elektro Plast Electrical Panel Terminal Block 2pcs 48.215
Electrical Panel Accessories

Elektro Plast Electrical Panel Terminal Block 2pcs 48.215

Electro-Plast WLZ35/2x150/n 48.215 Bipolar Branch Connector for aluminum and copper conductors, with a cross-sectional range of 35-150 mm².

  • Mounting support: flat with screw or on DIN rail
  • Insulating...

Electro-Plast WLZ35/2x150/n 48.215 Bipolar Branch Connector for aluminum and copper conductors, with a cross-sectional range of 35-150 mm².

  • Mounting support: flat with screw or on DIN rail
  • Insulating cover: protection against contact
  • Material: AL/CU
  • Rated current (Cu): 320 A
  • Rated current (Al): 290 A
  • Operating voltage: 0 V
  • Protection rating: IP20
  • Poles: 1
  • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Electro-Plast WLZ35/2x150/n 48.215 Bipolar Branch Connector for aluminum and copper conductors, with a cross-sectional range of 35-150 mm².

  • Mounting support: flat with screw or on DIN rail
  • Insulating cover: protection against contact
  • Material: AL/CU
  • Rated current (Cu): 320 A
  • Rated current (Al): 290 A
  • Operating voltage: 0 V
  • Protection rating: IP20
  • Poles: 1
  • Connections: 4
  • Dimensions (height x width x depth): 95 mm x 51.5 mm x 59 mm
  • Weight with packaging: 0.3 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Terminal block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
