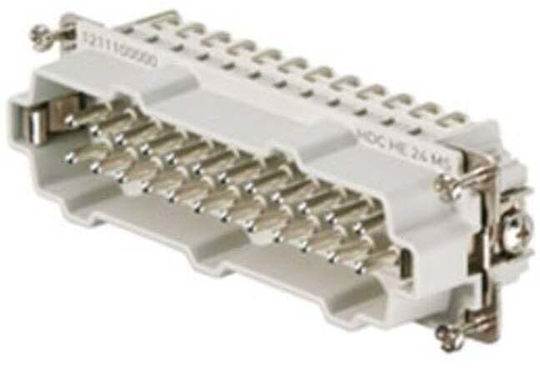

The industrial connector HDC HE 24 MS 1211100000 features a screw connection and includes:

• 24 contacts
• PE contact
• Depth: 111 mm
• Height: 35.7 mm
• Width: 34 mm
• Maximum current: 16 A
• Maximum voltage: 500 V
• Rated voltage according to UL/CSA: 600 V AC/DC
• Contact surface material: silver
• Body material: thermoplastic
• Flammability rating: V-0 (UL 94)
• Operating temperature: -40 °C to 125 °C
• Chemical resistance: yes
• Pollution degree: 3
• Maximum tightening torque of main contact: 0.55 Nm
• Minimum tightening torque of main contact: 0.5 Nm
• Conductor cross-section: 2.5 mm² (max.)
• Insulation type: glass fiber reinforced PC
