SilentiumPC CCTV System Power Supply
CCTV Accessories

SilentiumPC CCTV System Power Supply

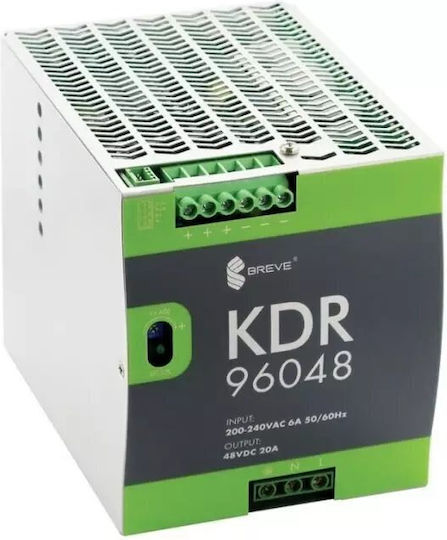

SilentiumPC KDR 96048 switching power supply for T-35 DIN rail, with the following features:

  • Output: 48-55VDC
  • Power: 960W
  • Maximum current: 20A
  • Input: 180-264V AC and 120-370V DC
  • Peak load: 150% for 3...

SilentiumPC KDR 96048 switching power supply for T-35 DIN rail, with the following features:

  • Output: 48-55VDC
  • Power: 960W
  • Maximum current: 20A
  • Input: 180-264V AC and 120-370V DC
  • Peak load: 150% for 3 seconds
  • Phases: 1
  • Efficiency: 94%
  • Operating temperature: -30 to +70 °C
  • Protection rating: IP20
  • Protections: thermal, short-circuit, overload, overvoltage
  • LED...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

SilentiumPC KDR 96048 switching power supply for T-35 DIN rail, with the following features:

  • Output: 48-55VDC
  • Power: 960W
  • Maximum current: 20A
  • Input: 180-264V AC and 120-370V DC
  • Peak load: 150% for 3 seconds
  • Phases: 1
  • Efficiency: 94%
  • Operating temperature: -30 to +70 °C
  • Protection rating: IP20
  • Protections: thermal, short-circuit, overload, overvoltage
  • LED indicator: DC-OK
  • Connection: screw terminal
  • Dimensions: 150 mm x 110 mm x 125.2 mm
  • Weight: 2.47 kg
  • Test: 100% thermal stress test at full load
  • Manufacturer: BREVE

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Power Supply

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

SilentiumPC KDR 96048 switching power supply for T-35 DIN rail, with the following features:

  • Output: 48-55VDC
  • Power: 960W
  • Maximum current: 20A
  • Input: 180-264V AC and 120-370V DC
  • Peak load: 150% for 3 seconds
  • Phases: 1
  • Efficiency: 94%
  • Operating temperature: -30 to +70 °C
  • Protection rating: IP20
  • Protections: thermal, short-circuit, overload, overvoltage
  • LED indicator: DC-OK
  • Connection: screw terminal
  • Dimensions: 150 mm x 110 mm x 125.2 mm
  • Weight: 2.47 kg
  • Test: 100% thermal stress test at full load
  • Manufacturer: BREVE

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Power Supply

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

506,90 €
14,00 €   shipping cost
