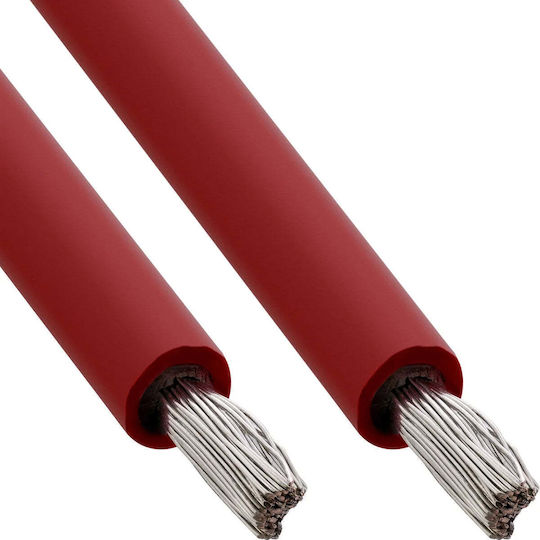

InLine® H1Z2Z2-K solar installation cable with a cross-section of 6 mm² and a length of 25 m, suitable for photovoltaic installations. The conductor is made of tinned copper and the insulation is made of cross-linked polyolefins XLPO, low-smoke.

• Maximum operating voltage: 1500 V
• Diameter: 6.3 mm
• Insulation thickness: 0.7 mm
• DC resistance: 3.39 Ohm/km
• Test voltage: AC 6.5 kV, DC 15 kV
• Operating temperature: -40°C to +90°C
• Minimum bending radius: 26 mm
• Ozone and weather resistance, according to EN 60811 / 50618
• Fire resistance: EN 60332-1-2, LSOH
• Weight: 1.97 kg
