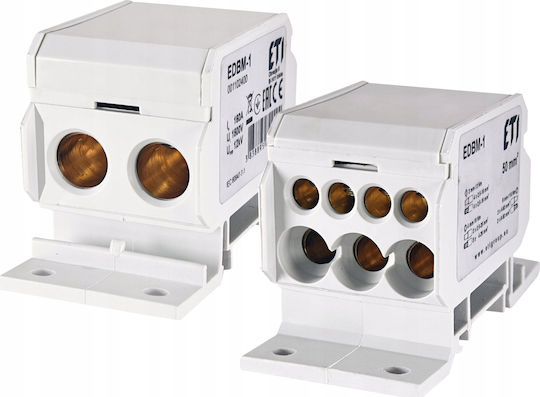

ETI Power Distribution Block 001102400
Electrical Supplies

ETI Power Distribution Block 001102400

The ETI Polam 001102400 EDBM-1 distribution block is designed for power distribution in electrical installations. It provides the following technical specifications:

  • Rated current: 160 A
  • Operating...

The ETI Polam 001102400 EDBM-1 distribution block is designed for power distribution in electrical installations. It provides the following technical specifications:

  • Rated current: 160 A
  • Operating voltage: 400 V
  • Housing material: PA6 GF25
  • Terminals: MO-58
  • Manufacturer code: 001102400
  • Series: EDBM-1
  • Protection rating: IP20
  • Number of terminals: 7
  • Number of...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The ETI Polam 001102400 EDBM-1 distribution block is designed for power distribution in electrical installations. It provides the following technical specifications:

  • Rated current: 160 A
  • Operating voltage: 400 V
  • Housing material: PA6 GF25
  • Terminals: MO-58
  • Manufacturer code: 001102400
  • Series: EDBM-1
  • Protection rating: IP20
  • Number of terminals: 7
  • Number of poles: 1
  • Terminals per pole: 9
  • Operating temperature: -25~80°C
  • Dimensions: 44 mm × 40 mm × 80 mm
  • Mounting: TH35 rail/plate
  • Nominal cross-section: 2x4-50 mm² + 3x2.5-25 mm² + 4x2.5-16 mm²
  • Color: gray

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Power Distribution Block

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

28,90 €
