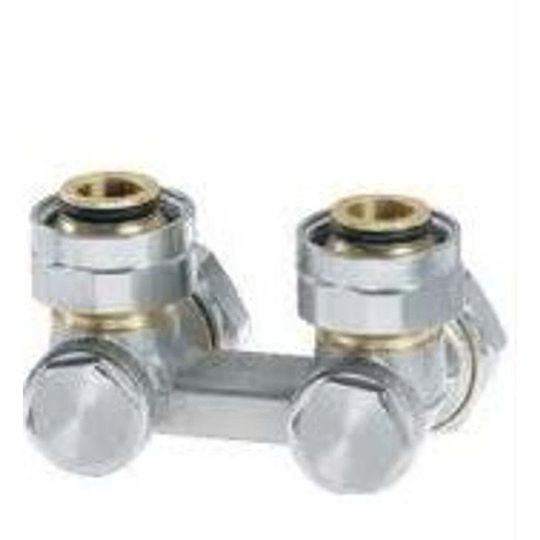

Basic Home Corner Radiator Switch Outer Loop ½ for Radiator Body
Radiator Switches

Basic Home Corner Radiator Switch Outer Loop ½ for Radiator Body

Angled connection valve with 3/4' x 3/4' cones — C093100402

  • Maximum static pressure: 1 MPa (10 bar)
  • Maximum heating medium temperature: 120°C
  • Maximum differential pressure: 0.1 MPa
  • Body material:...

Angled connection valve with 3/4' x 3/4' cones — C093100402

  • Maximum static pressure: 1 MPa (10 bar)
  • Maximum heating medium temperature: 120°C
  • Maximum differential pressure: 0.1 MPa
  • Body material: Hot-forged, nickel-plated brass (Cu Zn40 Pb2)
  • Dual sealing: Teflon seal and flat EPDM seal for sanitary applications
  • Ball: Polished, chrome-plated brass
  • Kvs...
See full description See full description

Learn more about invoicing
Review the product
Product report

Description

Description

Angled connection valve with 3/4' x 3/4' cones — C093100402

  • Maximum static pressure: 1 MPa (10 bar)
  • Maximum heating medium temperature: 120°C
  • Maximum differential pressure: 0.1 MPa
  • Body material: Hot-forged, nickel-plated brass (Cu Zn40 Pb2)
  • Dual sealing: Teflon seal and flat EPDM seal for sanitary applications
  • Ball: Polished, chrome-plated brass
  • Kvs (m³/h): 1.7
  • Application: Two-pipe systems, for radiators with an integrated thermostatic insert

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Placement
Outer Loop
Type
Corner
Size
½ "
Suitable for
for Radiator Body

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Angled connection valve with 3/4' x 3/4' cones — C093100402

  • Maximum static pressure: 1 MPa (10 bar)
  • Maximum heating medium temperature: 120°C
  • Maximum differential pressure: 0.1 MPa
  • Body material: Hot-forged, nickel-plated brass (Cu Zn40 Pb2)
  • Dual sealing: Teflon seal and flat EPDM seal for sanitary applications
  • Ball: Polished, chrome-plated brass
  • Kvs (m³/h): 1.7
  • Application: Two-pipe systems, for radiators with an integrated thermostatic insert

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outer Loop
Type
Corner
Size
½ "
Suitable for
for Radiator Body

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
