Electric Panel Meters

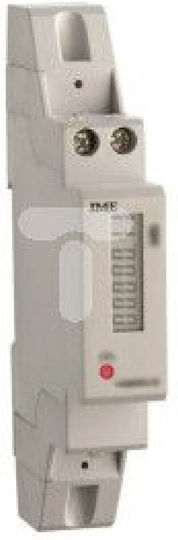

IME Digital Single-Phase Electrical Panel Energy Analyzer CE11165A2

The IME CE11165A2 energy analyzer measures active power by direct measurement and displays the readings digitally. It is a single-phase electronic meter with one tariff, designed to measure...

The IME CE11165A2 energy analyzer measures active power by direct measurement and displays the readings digitally. It is a single-phase electronic meter with one tariff, designed to measure electricity consumption.

  • Display type: Digital
  • Number of phases: Single-phase
  • Maximum current: 32 A
  • Reference current: 5 A
  • Accuracy class: B
  • Number of tariffs: 1
  • Number...
See full description See full description

Top specs

See all
71 01 €
Delivery Thu, 26 Nov - Wed, 02 Dec
14,00 €   shipping cost
Sent from Greece
From Getters 4.5 (118)

Learn more about invoicing

Description & Specifications

The IME CE11165A2 energy analyzer measures active power by direct measurement and displays the readings digitally. It is a single-phase electronic meter with one tariff, designed to measure electricity consumption.

  • Display type: Digital
  • Number of phases: Single-phase
  • Maximum current: 32 A
  • Reference current: 5 A
  • Accuracy class: B
  • Number of tariffs: 1
  • Number of pulses: up to 1000 Imp/kWh (kvarh)
  • Reference voltage L-L: up to 264 V
  • Reference voltage N-L: 196–230 V
  • Frequency range: 47–63 Hz
  • Type of energy measured: Active power
  • Pulse output type: S0
  • Pulse output: Electrical
  • Interface type: None
  • Installation method: Front installation
  • Protection rating: IP52
  • Approval: National

Manufacturer

Type
Energy Analyzer
Display Type
Digital
Number of Phases
Single-phase
Maximum Current
32 A

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
