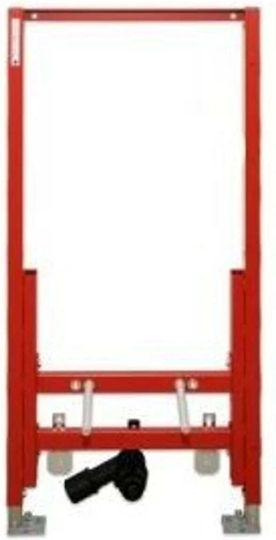

Teceprofil installation frame for a wall-hung bidet, measuring 112 x 50 cm. Suitable for the TECEprofil® system or custom dry-wall construction. Can be installed against a wall at a 45° angle.

• Dimensions: 1120 x 500 x 140 mm
• Installation depth: 140–200 mm
• Weight: 10 kg
• Metal support frame with electrostatic coating
• 2 mounting feet with brakes, height adjustment 0–200 mm
• 2 threaded rods with M12 nuts and covers for mounting the ceramic fixture
• DN50 drain elbow with 50/30 mm rubber reducer
• Plugs that also serve as markers for construction
• 2 galvanized shaped steel sheets for mounting wall brackets, spacing 80–300 mm
