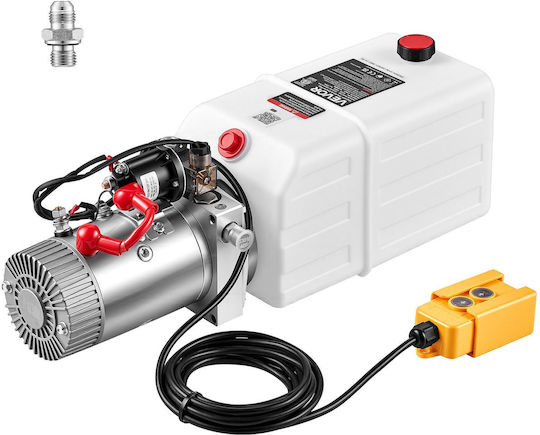

Hydraulic Pump Capacity: The VEVOR 12V DC 1.6 kW hydraulic pump delivers reliable power for lifting tasks, with a flow rate of 0.91 GPM (3.4 L/min) and an operating pressure of 16–20 MPa.
Maximum Relief Pressure: 3200 PSI / 22 MPa. The tank has a capacity of 7 quarts (1.75 gal), ensuring smooth, uninterrupted operation.
Easy to Use: The single-acting pump provides powerful electric-assisted lifting and smooth lowering. The built-in relief valve releases excess pressure for safe operation.
Installation: The pump is delivered pre-assembled. Simply add hydraulic oil, connect the wires and hoses, and switch on the unit.
Construction: The sturdy, sealed construction helps prevent oil leaks, while the durable plastic tank ensures a long service life.
-
Operation: Single-acting
-
Speed: 2600 r/min
-
Voltage: DC 12V
-
Power: 1.6 kW
-

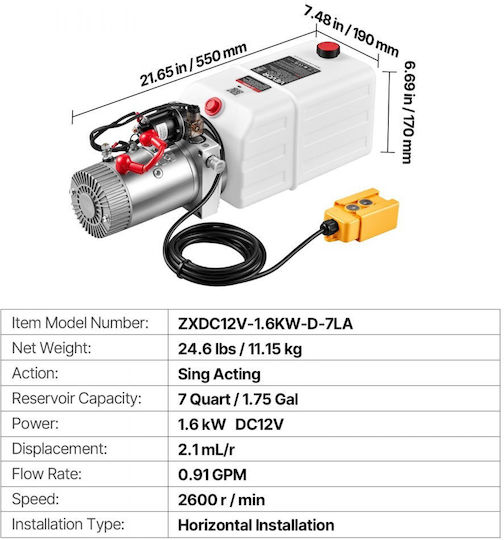

Dimensions: 550 x 190 x 200 mm
-
Net Weight: 11.15 kg (with all accessories)
-
Model Number: ZXDC12V-1.6KW-D-7LA
Important Note: Designed for horizontal mounting only; not suitable for vertical installation.
