Axon CCTV System Surge Protector AZP-AxonPoEPRO--5

The AXON PoE NetProtector Professional is designed to protect devices connected to a 10/100 Mb/s Ethernet network and remotely powered via unused wire pairs from surges. It features two circuits: a...

The AXON PoE NetProtector Professional is designed to protect devices connected to a 10/100 Mb/s Ethernet network and remotely powered via unused wire pairs from surges. It features two circuits: a data transmission circuit (lines 1-2, 3-6) and a power supply circuit (lines 4+5, 7+8). Both are protected by surge protection components that discharge the load...

See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The AXON PoE NetProtector Professional is designed to protect devices connected to a 10/100 Mb/s Ethernet network and remotely powered via unused wire pairs from surges. It features two circuits: a data transmission circuit (lines 1-2, 3-6) and a power supply circuit (lines 4+5, 7+8). Both are protected by surge protection components that discharge the load to ground and also protect the lines from each other within each wire pair. To increase current-carrying capacity, lines 4 and 5 are shorted together, as are lines 7 and 8.

Technical specifications:

  • Manufacturer's part number: AZP-AXONPoEPRO--5
  • Connector type: RJ45
  • Number of sockets: 1 pc.
  • Maximum voltage: 6 V
  • Nominal voltage: 5 V
  • Maximum discharge current: 135A - 8/20µs
  • Nominal discharge current: 100A - 8/20µs and 5kA - 8/20µs
  • Height: 50 mm
  • Width: 70 mm
  • Depth: 30 mm
  • Weight: 0.16 kg

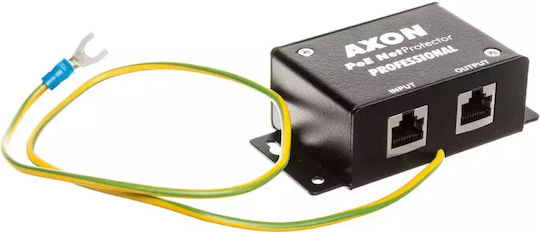

The metal casing provides enhanced resistance to mechanical stress and shields the protection circuit. The shielded RJ45 sockets maintain shield continuity with STP cable. The socket shields are also connected to ground. This is an enhanced version of the AXON PoE NetProtector.
