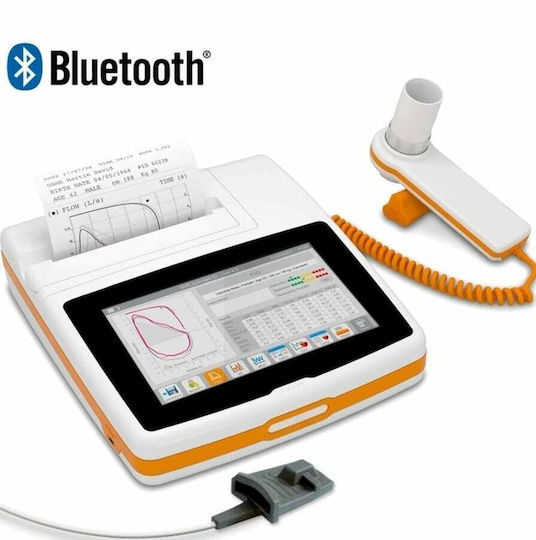

The New Spirolab spirometer is a comprehensive solution for measuring respiratory function. It is designed for both private users and hospital physicians, offering measurement capabilities via a PC using WinSpiro Pro software or as a standalone device, thanks to its 7” high-resolution screen and built-in thermal printer.

The spirometer’s memory can store up to 10,000 measurements or 900 hours of oximetry, depending on the version. Measurements include: FVC, VC, MVV, PRE/POST BD, with the option to compare them side by side. It offers a wide range of parameters, allowing users to select which ones appear on screen in the measurement results.

The built-in thermal printer is fast and quiet, and can be configured to print selected parameters and display the physician’s or hospital’s details.

The Spirolab offers oximetry (optional) and works with both MIR turbines: the reusable turbine and the single-use FlowMIR turbine with an integrated mouthpiece.

Other key features:

• Long-lasting rechargeable battery, allowing numerous measurements.

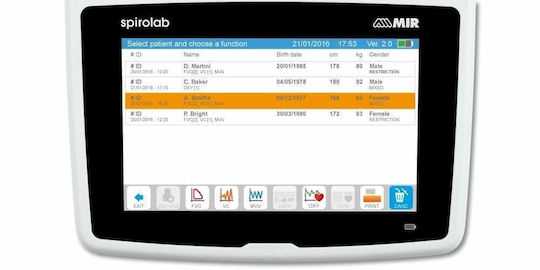

• Easy-to-use menu for quick spirometry.
• Pediatric menu with animated images to make it easier to engage young patients.
• Connection to a PC via USB or wirelessly via Bluetooth.

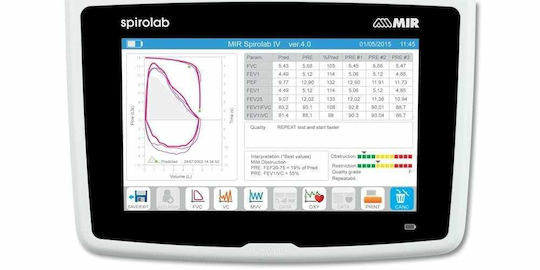

• Real-time display of F/V and V/T curves, as well as comparison of POST tests.
• Measurement using a methacholine challenge test.

Package includes:

• Carrying case.
• CD with WinSpiro Pro software and user manual.
• Charger.
• USB cable.
• MIR reusable turbine or 60 single-use FlowMIR turbines.
• Thermal printer paper.
• Oximetry sensor (optional).

Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

Oximetry parameters: %SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time ≤89%), T89% (SpO2 time ≤88%), T40 (Bradycardia duration with Pulse Rate 120 BPM).
