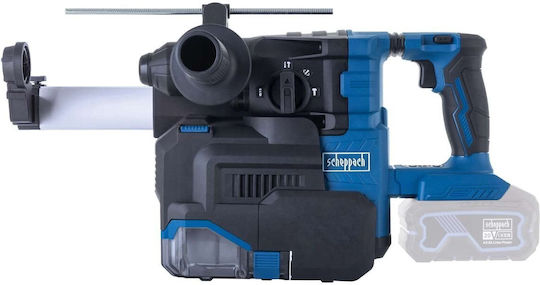

Scheppach BC-DH300DFS-X Brushless 20V Solo Cordless Rotary Hammer with SDS Plus Socket
Rotary Hammers

Scheppach BC-DH300DFS-X Brushless 20V Solo Cordless Rotary Hammer with SDS Plus Socket

Key features:

  • Solo (without battery or charger)
  • 20V brushless motor
  • Impact energy: 2.8 joules
  • SDS-Plus chuck
  • Integrated dust extraction
See full description

Top specs

  • Item Excavator

  • Impact Energy

    The impact force shows how powerful the tool is. The more Joules, the stronger the hits.

    2. Specifically for demolition tools with frequent and heavy use, at least 20 Joules are recommended.

    2.8

    For casual amateur use, 2 to 4 Joules are considered sufficient.

  • Socket

    SDS - SDS Plus (TE-C)

    SDS sockets have better performance in rotary hammer functions compared to others and are suitable for working on concrete or stone. They are also easy to change drill bits, which can be done with one hand. 2. SDS-Plus (TE-C) sockets have a base diameter of 10 mm and can accept drill bit diameters between 4-30 mm. These sockets are only compatible with corresponding SDS Plus drills.

  • Maximum Number of Impacts

    The number of strikes that the machine can deliver in one minute. Generally, the higher the number, the easier the work on harder surfaces.

    2.

    Note that the Impact Energy is also important for performance, indicating the force of each strike.

  • Volt

    The higher the tool's voltage, the more powerful it becomes and performs tasks more easily, however, higher voltage usually means an increase in weight.

    2. Impact energy is another characteristic that shows the "strength" of the tool.

    20

    Tools that are 18 volts and above are considered high power and their strength is sufficient even for professional work.
  • See all

Learn more about invoicing
Review the product
Product report

Description

Description

Discover the high energy efficiency of the 20V brushless motor and complete demanding drilling tasks with absolute precision.

At a glance

  • 20V brushless motor: High energy efficiency, long service life, and maintenance-free operation.
  • 2.8 Joule impact energy: Drills into concrete up to 26 mm, steel up to 13 mm, and wood up to 30 mm.
  • SDS-Plus chuck: Quick accessory changes and reliable power transmission during use.
  • Integrated dust extraction: Efficient dust removal for a clean and safe work surface.

Brushless Motor & High Power

Work with top performance thanks to the 20V brushless motor, which delivers a long service life with no maintenance required. With an impact energy of 2.8 Joules and a rate of up to 4,440 bpm, you can easily drill through concrete up to 26 mm thick. In addition, the anti-kickback system protects you from sudden kickback, ensuring a stable and secure grip for every application.

4-Function Versatility & Clean Workmanship

Adapt the tool to your needs using the central 4-mode switch for drilling, hammer drilling, chiseling and chisel angle adjustment. The integrated dust extraction system keeps your workspace clean, while the built-in LED light lets you work with precision even in dark or hard-to-reach places.

Ergonomic Control & SDS-Plus

Change drill bits quickly thanks to the SDS-Plus chuck and handle the rotary hammer comfortably with the 360° rotating auxiliary handle. Make use of the pulse function and depth adjustment for complete control over your tasks. The tool is supplied as a bare unit, without a battery or charger, making it an ideal addition to your equipment.

Specifications

  • Battery voltage: 20 V
  • Motor type: Brushless
  • Tool holder: SDS-Plus
  • Impact energy: 2.8 J
  • Impact rate: 0 – 4440 bpm
  • No-load speed: 0 – 1000 rpm
  • Maximum drilling diameter (wood): 30 mm
  • Maximum drilling diameter (concrete): 26 mm
  • Maximum drilling diameter (steel): 13 mm
  • LED light: Yes
  • Anti-kickback protection: Yes
  • Pulse function: Yes
  • Depth adjustment function: Yes
  • Dust extraction system: Yes

Package Contents

  • 1x Scheppach BC-DH300DFS-X rotary hammer body (battery and charger not included)
  • 1x Depth stop
  • 1x Auxiliary handle (360° rotating)
  • 1x Dust extraction system

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Power Source
Battery
Type
Excavator

Battery Specifications

Number of Batteries
0
Volt
20 V

Volt: 20

The higher the tool's voltage, the more powerful it becomes and performs tasks more easily, however, higher voltage usually means an increase in weight.

2. Impact energy is another characteristic that shows the "strength" of the tool.


Tools that are 18 volts and above are considered high power and their strength is sufficient even for professional work.
Lithium
No

Drilling Features

Steel Ø
13 mm

Steel Ø

The maximum possible drilling diameter in steel.
Wood Ø
30 mm

Wood Ø

The maximum possible drilling diameter in wood.
Cement Ø
26 mm

Cement Ø

The maximum possible drilling diameter in concrete.

Features

Maximum Motor Speed
1000 rpm

Maximum Motor Speed

The faster the machine's speed, the easier it is to drill into harder surfaces.
Impact Energy
2.8 Joule

Impact Energy: 2.8

The impact force shows how powerful the tool is. The more Joules, the stronger the hits.

2. Specifically for demolition tools with frequent and heavy use, at least 20 Joules are recommended.


For casual amateur use, 2 to 4 Joules are considered sufficient.
Maximum Number of Impacts
4440 bpm

Maximum Number of Impacts

The number of strikes that the machine can deliver in one minute. Generally, the higher the number, the easier the work on harder surfaces.

2.

Note that the Impact Energy is also important for performance, indicating the force of each strike.
Jam Protection
Yes

Jam Protection


Technology for protecting the operator from injuries in case of tool jamming during operation.
Socket
SDS - SDS Plus (TE-C)

Socket

SDS - SDS Plus (TE-C)

SDS sockets have better performance in rotary hammer functions compared to others and are suitable for working on concrete or stone. They are also easy to change drill bits, which can be done with one hand. 2. SDS-Plus (TE-C) sockets have a base diameter of 10 mm and can accept drill bit diameters between 4-30 mm. These sockets are only compatible with corresponding SDS Plus drills.
Brushless
Yes

Brushless


It features a brushless motor that generates less heat and friction, resulting in less wear on the motor and longer battery life.
Pneumatic
No
Speed Adjustable
No
Impact
Yes
Rotary
No
Screwing/Unscrewing
No
Anti-Vibration System
No

Anti-Vibration System

The anti-vibration system limits the transfer of vibrations from the motor/impact mechanism to the handle, improving comfort and reducing fatigue during long hours of work. It is especially useful for concrete drilling or demolition tasks. It does not necessarily increase power, but it improves control and ergonomics.

Additional Features

Handle included
Yes
Integrated Light
Yes
Guide
Yes
Net Weight
-
Weight (with Battery)
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

Discover the high energy efficiency of the 20V brushless motor and complete demanding drilling tasks with absolute precision.

At a glance

  • 20V brushless motor: High energy efficiency, long service life, and maintenance-free operation.
  • 2.8 Joule impact energy: Drills into concrete up to 26 mm, steel up to 13 mm, and wood up to 30 mm.
  • SDS-Plus chuck: Quick accessory changes and reliable power transmission during use.
  • Integrated dust extraction: Efficient dust removal for a clean and safe work surface.

Brushless Motor & High Power

Work with top performance thanks to the 20V brushless motor, which delivers a long service life with no maintenance required. With an impact energy of 2.8 Joules and a rate of up to 4,440 bpm, you can easily drill through concrete up to 26 mm thick. In addition, the anti-kickback system protects you from sudden kickback, ensuring a stable and secure grip for every application.

4-Function Versatility & Clean Workmanship

Adapt the tool to your needs using the central 4-mode switch for drilling, hammer drilling, chiseling and chisel angle adjustment. The integrated dust extraction system keeps your workspace clean, while the built-in LED light lets you work with precision even in dark or hard-to-reach places.

Ergonomic Control & SDS-Plus

Change drill bits quickly thanks to the SDS-Plus chuck and handle the rotary hammer comfortably with the 360° rotating auxiliary handle. Make use of the pulse function and depth adjustment for complete control over your tasks. The tool is supplied as a bare unit, without a battery or charger, making it an ideal addition to your equipment.

Specifications

  • Battery voltage: 20 V
  • Motor type: Brushless
  • Tool holder: SDS-Plus
  • Impact energy: 2.8 J
  • Impact rate: 0 – 4440 bpm
  • No-load speed: 0 – 1000 rpm
  • Maximum drilling diameter (wood): 30 mm
  • Maximum drilling diameter (concrete): 26 mm
  • Maximum drilling diameter (steel): 13 mm
  • LED light: Yes
  • Anti-kickback protection: Yes
  • Pulse function: Yes
  • Depth adjustment function: Yes
  • Dust extraction system: Yes

Package Contents

  • 1x Scheppach BC-DH300DFS-X rotary hammer body (battery and charger not included)
  • 1x Depth stop
  • 1x Auxiliary handle (360° rotating)
  • 1x Dust extraction system

Manufacturer

Manufacturer Details

Warnings & Safety Information

Product Details

Power Source
Battery
Type
Excavator

Battery Specifications

Number of Batteries
0
Volt
20 V

Volt: 20

The higher the tool's voltage, the more powerful it becomes and performs tasks more easily, however, higher voltage usually means an increase in weight.

2. Impact energy is another characteristic that shows the "strength" of the tool.


Tools that are 18 volts and above are considered high power and their strength is sufficient even for professional work.
Lithium
No

Drilling Features

Steel Ø
13 mm

Steel Ø

The maximum possible drilling diameter in steel.
Wood Ø
30 mm

Wood Ø

The maximum possible drilling diameter in wood.
Cement Ø
26 mm

Cement Ø

The maximum possible drilling diameter in concrete.

Features

Maximum Motor Speed
1000 rpm

Maximum Motor Speed

The faster the machine's speed, the easier it is to drill into harder surfaces.
Impact Energy
2.8 Joule

Impact Energy: 2.8

The impact force shows how powerful the tool is. The more Joules, the stronger the hits.

2. Specifically for demolition tools with frequent and heavy use, at least 20 Joules are recommended.


For casual amateur use, 2 to 4 Joules are considered sufficient.
Maximum Number of Impacts
4440 bpm

Maximum Number of Impacts

The number of strikes that the machine can deliver in one minute. Generally, the higher the number, the easier the work on harder surfaces.

2.

Note that the Impact Energy is also important for performance, indicating the force of each strike.
Jam Protection
Yes

Jam Protection


Technology for protecting the operator from injuries in case of tool jamming during operation.
Socket
SDS - SDS Plus (TE-C)

Socket

SDS - SDS Plus (TE-C)

SDS sockets have better performance in rotary hammer functions compared to others and are suitable for working on concrete or stone. They are also easy to change drill bits, which can be done with one hand. 2. SDS-Plus (TE-C) sockets have a base diameter of 10 mm and can accept drill bit diameters between 4-30 mm. These sockets are only compatible with corresponding SDS Plus drills.
Brushless
Yes

Brushless


It features a brushless motor that generates less heat and friction, resulting in less wear on the motor and longer battery life.
Pneumatic
No
Speed Adjustable
No
Impact
Yes
Rotary
No
Screwing/Unscrewing
No
Anti-Vibration System
No

Anti-Vibration System

The anti-vibration system limits the transfer of vibrations from the motor/impact mechanism to the handle, improving comfort and reducing fatigue during long hours of work. It is especially useful for concrete drilling or demolition tasks. It does not necessarily increase power, but it improves control and ergonomics.

Additional Features

Handle included
Yes
Integrated Light
Yes
Guide
Yes
Net Weight
-
Weight (with Battery)
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
