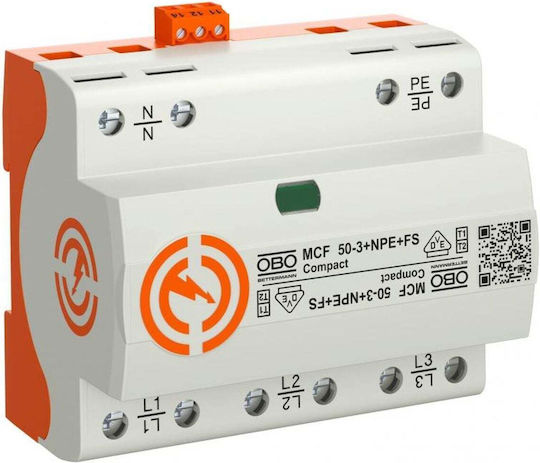

OBO Bettermann Panel Lightning Protection Type T1 / T2 / T3
Panel Lightning Protection

OBO Bettermann Panel Lightning Protection Type T1 / T2 / T3 Code: 5096979

The OBO Bettermann LightningController Compact MCF50 3+N/PE is a combined surge arrester designed to protect low-voltage electrical installations from lightning currents and surges caused by lightning...

The OBO Bettermann LightningController Compact MCF50 3+N/PE is a combined surge arrester designed to protect low-voltage electrical installations from lightning currents and surges caused by lightning strikes or switching operations in the power network. This compact device provides comprehensive protection for electrical equipment and is suitable for...

See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

The OBO Bettermann LightningController Compact MCF50 3+N/PE is a combined surge arrester designed to protect low-voltage electrical installations from lightning currents and surges caused by lightning strikes or switching operations in the power network. This compact device provides comprehensive protection for electrical equipment and is suitable for installation in electrical distribution boards.

Key features:

  • Manufacturer: OBO Bettermann
  • Series: LightningController Compact
  • Product code: 5096979
  • Protection type: Type 1+2+3
  • Configuration: 3+N/PE
  • Rated voltage: 230 V AC
  • Maximum continuous operating voltage (Uc): 255 V
  • Lightning impulse current (Iimp): 12.5 kA per pole
  • Total lightning impulse current: Up to 50 kA
  • Nominal discharge current (In): 35 kA (8/20 μs)
  • Maximum discharge current (Imax): 50 kA (8/20 μs)
  • Voltage protection level: ≤1.5 kV L-N
  • L-PE protection level: ≤2.5 kV
  • Indicator/remote signalling contact: Yes
  • Mounting: 35 mm DIN rail
  • Degree of protection: IP20
  • Operating temperature: −40 °C to +80 °C

The OBO LightningController Compact MCF50 is suitable for use in main electrical distribution boards, commercial and industrial installations, commercial buildings, building electrical installations, and applications with increased surge protection requirements.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
5096979
Type
T1, T2, T3

Type

T1

It has the ability to discharge strong currents from lightning strikes and is installed in the main panel of buildings.

T2

It has the ability to discharge current from indirect lightning strikes, network overvoltages, and arming/disarming of coupling devices in an installation. It is installed on the main panel of buildings.

T3

Used to protect specific loads and has low discharge current.
Replacement Cartridge
No
