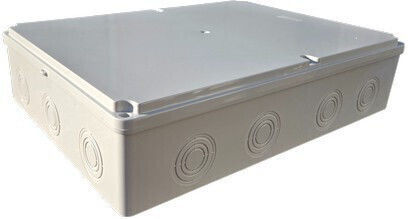

Eurolamp Outdoor Electrical Junction Box Waterproof IP65 in Grey
Junction Boxes

Eurolamp Outdoor Electrical Junction Box Waterproof IP65 in Grey

Surface-Mounted Enclosure, dimensions 380x280x90 mm, with an ingress protection rating of IP65.

  • Impact Resistance Rating (IK): IK10
  • Operating Temperature: -25 °C to +40 °C
  • Material: ABS
  • Colour: Grey...

Surface-Mounted Enclosure, dimensions 380x280x90 mm, with an ingress protection rating of IP65.

  • Impact Resistance Rating (IK): IK10
  • Operating Temperature: -25 °C to +40 °C
  • Material: ABS
  • Colour: Grey (RAL 7035)
  • Net Weight: 0.900 kg
  • Gross Weight: 0.928 kg
  • Packaging: Shrink Film
  • Shape: Rectangular
  • Height: 90 mm
  • Width: 280 mm
  • Length: 380 mm
  • RoHS Certified: Yes
    • ...
See Description & Specifications See Description & Specifications

Learn more about invoicing
Review the product
Product report

Description & Specifications

Surface-Mounted Enclosure, dimensions 380x280x90 mm, with an ingress protection rating of IP65.

  • Impact Resistance Rating (IK): IK10
  • Operating Temperature: -25 °C to +40 °C
  • Material: ABS
  • Colour: Grey (RAL 7035)
  • Net Weight: 0.900 kg
  • Gross Weight: 0.928 kg
  • Packaging: Shrink Film
  • Shape: Rectangular
  • Height: 90 mm
  • Width: 280 mm
  • Length: 380 mm
  • RoHS Certified: Yes
  • Mounting Type: Surface-mounted
  • Door Material: ABS
  • Lock: No
  • UV Protection: Yes
  • Maximum Voltage: 3000 V
  • Inlet Diameters: Ø 18.5/26.5/37.5
  • Glow-Wire Test: 650 °C
  • Number of Inlets (Holes): 14

Manufacturer

Manufacturer Details

Warnings & Safety Information
Placement
Outdoor
Branching
No
Plasterboard
No
Protection Certification
IP65

Protection Certification

It is an indicator that shows us the degree of protection of the box. The indicator (I) which is the first number refers to protection from dust and the indicator (P) which is the second number refers to protection from water. The higher the numbers for each indicator, the better the protection.
Colour
Grey
Length
380 mm
Width
280 mm
Height
90 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
