Micrometers

Mitutoyo Digital Micrometer

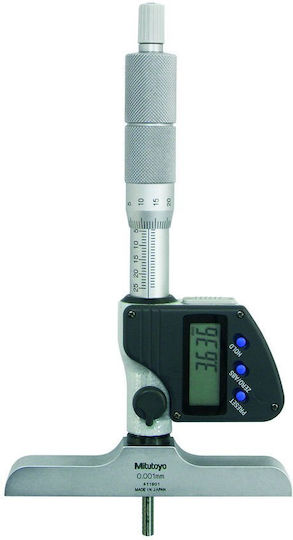

Mitutoyo 329-250-30 DMC100-150MX digital depth micrometer with a measuring range of 0–150 mm and a resolution of 0.001 mm. Features zero-setting at any position, switching between relative and...

Mitutoyo 329-250-30 DMC100-150MX digital depth micrometer with a measuring range of 0–150 mm and a resolution of 0.001 mm. Features zero-setting at any position, switching between relative and absolute measurements, data storage, calibration capability, a ratchet and a locking lever. The 6 interchangeable measuring rods can be fitted to measure different...

See Description & Specifications See Description & Specifications

Learn more about invoicing

Description & Specifications

Mitutoyo 329-250-30 DMC100-150MX digital depth micrometer with a measuring range of 0–150 mm and a resolution of 0.001 mm. Features zero-setting at any position, switching between relative and absolute measurements, data storage, calibration capability, a ratchet and a locking lever. The 6 interchangeable measuring rods can be fitted to measure different depths in 25 mm increments.

  • Accuracy: ±3 µm
  • Measuring error E MPE: ±4 µm
  • Minimum measuring force: 5 N
  • Maximum measuring force: 10 N
  • Spindle material: hardened steel
  • Finish: satin chrome-plated
  • Overall dimensions: 345 × 212 × 44 mm
  • Barrel diameter: 18 mm
  • Measuring spindle diameter: 4 mm
  • Bridge length: 101.6 mm
  • Barrel scale: 1/100 mm
  • Digit height: 7.5 mm
  • Power supply: silver oxide-zinc (AgO) battery

Manufacturer

Type
Simple
Measuring Range
-
Digital
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

2.034,90 €
14,00 €   shipping cost
