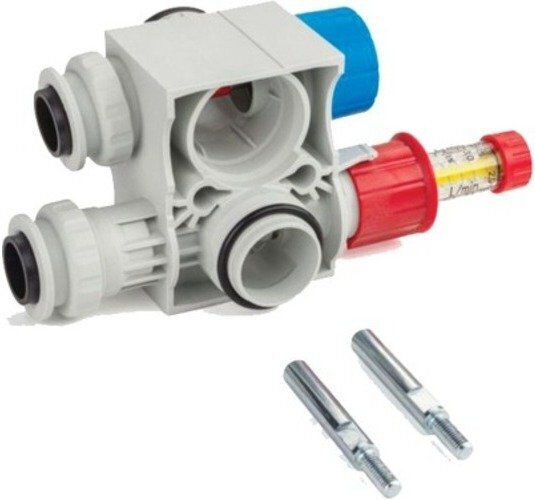

Rehau Rautherm Speed Hkv-p Manifold Extension Set 16 Fittings
Central Heating Parts & Accessories

Rehau Rautherm Speed Hkv-p Manifold Extension Set 16 Fittings

RAUTHERM SPEED HKV-P manifold extension set with 16-mm union fittings, for adding one circuit to the HKV-D P manifold. Suitable for underfloor heating and cooling systems.

  • Manufacturer: REHAU
  • Module...

RAUTHERM SPEED HKV-P manifold extension set with 16-mm union fittings, for adding one circuit to the HKV-D P manifold. Suitable for underfloor heating and cooling systems.

  • Manufacturer: REHAU
  • Module type: extension module
  • Material: glass-fibre-reinforced polyamide (PA 66 GF)
  • Number of circuits: 1
  • Dimensions: width 79 mm, height 170 mm, depth 74 mm
  • Maximum...
See full description See full description

Top specs

See all
  • Maximum Pressure 6 bar

Learn more about invoicing
Review the product
Product report

Description & Specifications

RAUTHERM SPEED HKV-P manifold extension set with 16-mm union fittings, for adding one circuit to the HKV-D P manifold. Suitable for underfloor heating and cooling systems.

  • Manufacturer: REHAU
  • Module type: extension module
  • Material: glass-fibre-reinforced polyamide (PA 66 GF)
  • Number of circuits: 1
  • Dimensions: width 79 mm, height 170 mm, depth 74 mm
  • Maximum operating pressure: 6.0 bar
  • Maximum test pressure: 10.0 bar
  • Temperature range: 4–60 °C
  • Flow rate indication: 0.8–3.75 l/min, in accordance with EN 1264-4
  • Connection: Push-Fit
  • Air vent valve: yes
  • Thermostatic valves: yes
  • Circuit connections: reversible
  • Compatibility: RAUTHERM SPEED K 16 and RAUTHERM SPEED 16
  • Set contents: module, extension screws and internal connections

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Thermostat
Compatibility
Underfloor Heating
Construction Material [Pharmaceutical]
-
Smart / WiFi
No

Technical Parameters

Thread / Cross-section
-
Power
-
Maximum Pressure
6 bar
