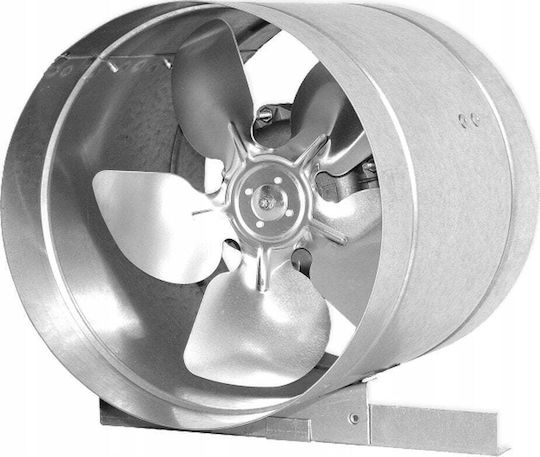

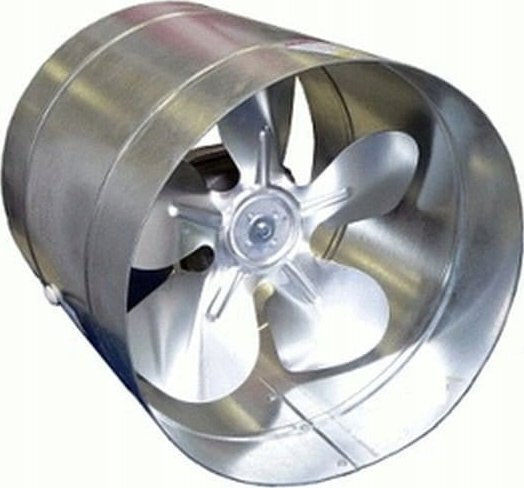

Vents VKOMz 315 axial duct fan for continuous operation, with the option of horizontal or vertical installation. It features a galvanized sheet steel housing and an aluminium impeller.

• Motor: single-phase with an external rotor, ball bearings and thermal protection with automatic restart
• Rated voltage: 230 V~
• Rated frequency: 50 Hz
• Rated current: 0.75 A
• Power consumption: 110 W
• Motor speed: 1300 rpm

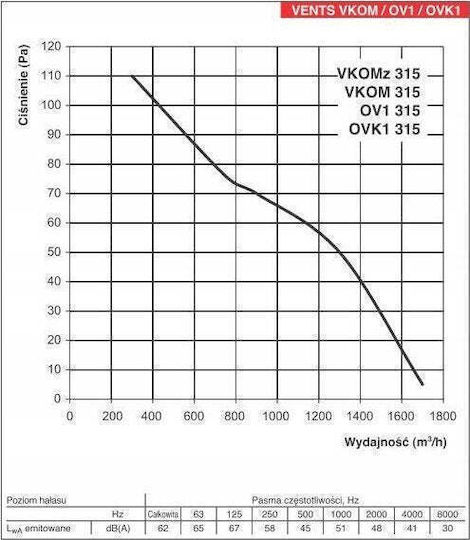

• Maximum airflow: 1700 m³/h
• Noise level: 54 dB at a distance of 3 m
• Operating temperature: up to +40 °C
• Speed control: stepless with a thyristor controller or in steps with a transformer controller

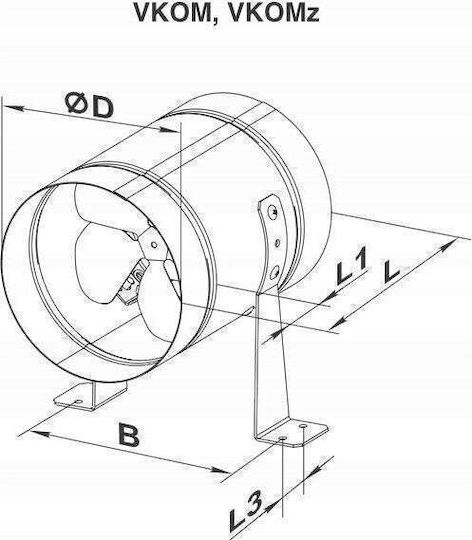

• Dimensions: Ø315 (ØD1) × 278 (L) / 55 (L1) mm
• Mounting: with 4 screws; hole spacing 337 mm (B) × 40 mm (L3)
• Protection rating: IP04
• Energy efficiency class: A+
• Mounting bracket included
