Description & Specifications

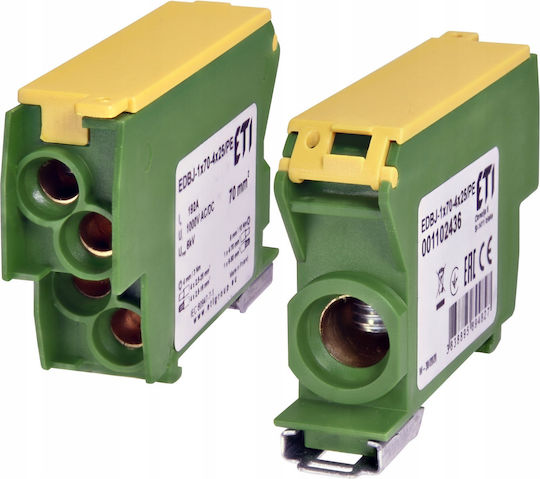

The ETI EDBJ-1x70-4x25PE distribution block is designed for distributing electrical power. It has one pole with five terminals and is mounted on a TH-35 mm DIN rail.

  • Rated current: 192 A
  • Rated voltage: 415 V
  • Operating temperature: -30 to 80 °C
  • Poles: 1
  • Terminals per pole: 5
  • Cross-section of connectable conductor: 1 × 4–70 mm² / 4 × 1.5–25 mm²
  • Insulating material: Thermoplastic
  • Flammability rating: UL94 V0
  • Mounting: TH-35 mm DIN rail
  • Height in the lowest mounting position: 45 mm
  • Degree of protection: IP20
