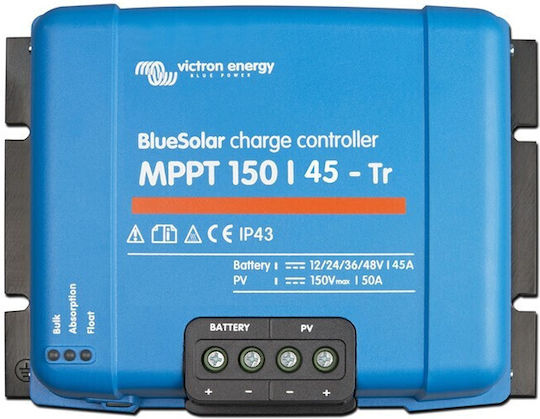

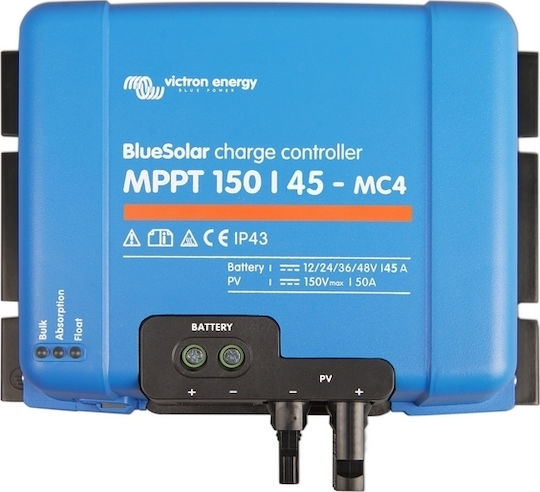

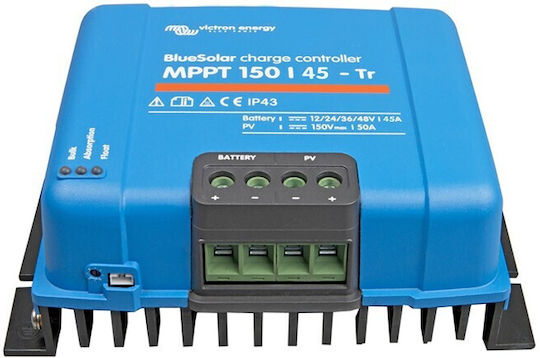

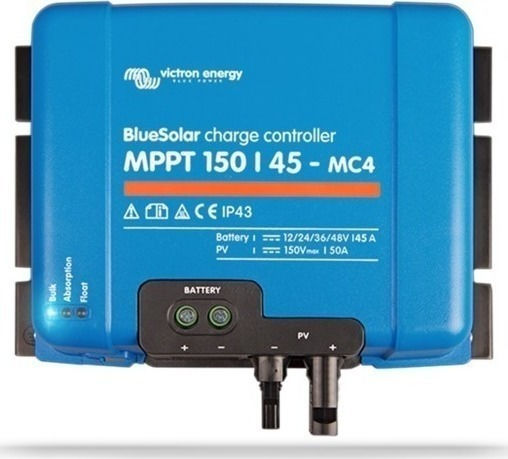

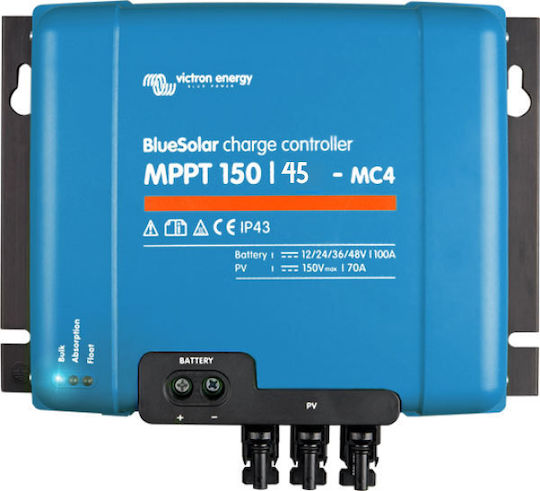

MPPT technology charge controller from the Bluesolar series with high speed and efficiency of up to 98%. The MPPT (maximum power point tracking) technology increases the energy stored in the batteries by 30% compared to simple PWM.

Applications

• Can be used with 12V, 24V, and 48V battery setups.
• During installation, the use of identical panels with the same power, voltage, and current characteristics is required.

Maximum Power and Input Voltage

• For 12V systems: maximum power 650W.
• For 24V systems: maximum power 1300W.
• For 48V systems: maximum power 2600W.
• Maximum input voltage Voc 150V.

Programming - Communication

• Connection to a computer for configuration via VE.Direct to USB cable.
• Connection to mobile or tablet via Bluetooth with VE.Direct to Bluetooth smart dongle cable and VictronConnect app.
• Monitoring through Victron Remote Management (VRM) and Venus GX.

Protection

• Protection against overheating and power degradation at high temperatures.
• Protection against open circuit and reverse polarity.
• Protection against reverse currents.
