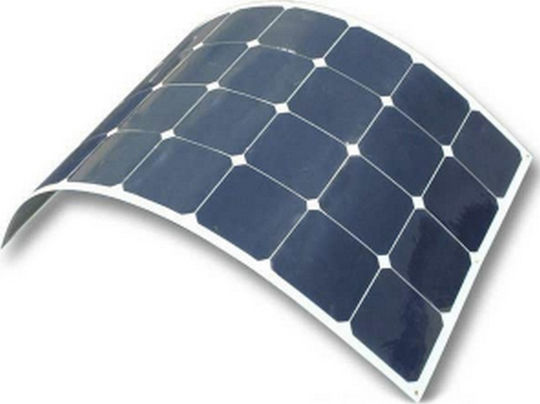

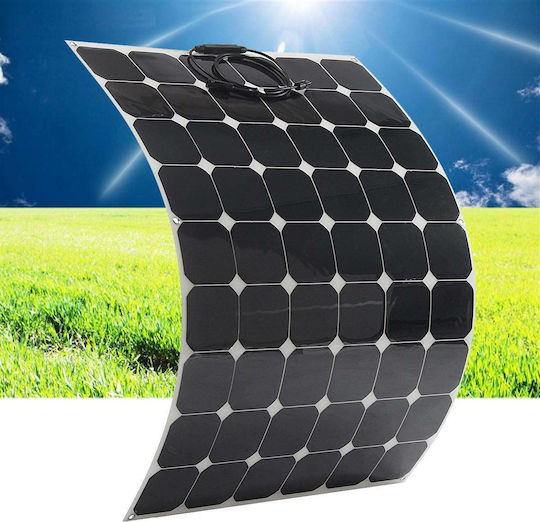

Flexible Photovoltaic Collector 200W – 24V
Suitable for boats, caravans, and other demanding applications where space and weight are limited.

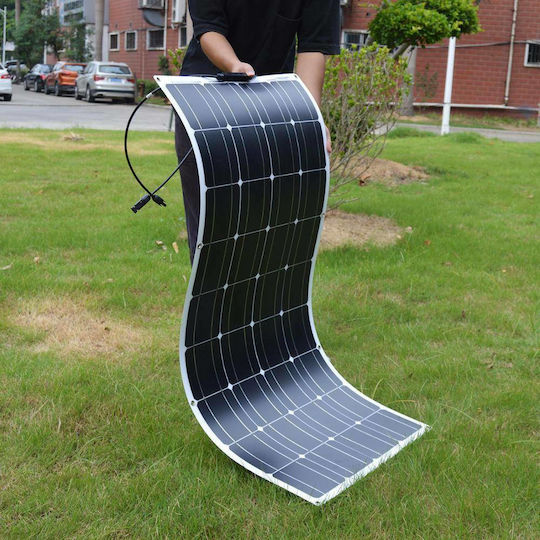

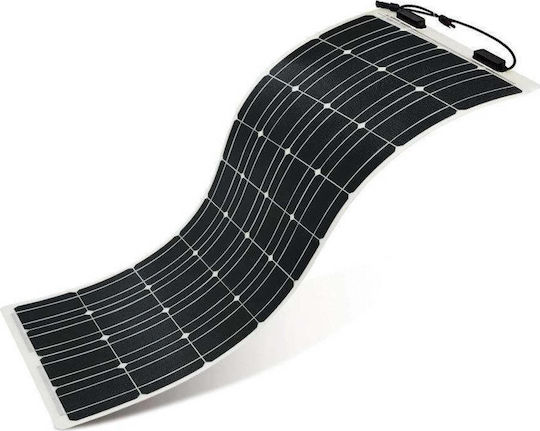

It is resistant to vibrations, drops, and seawater (rain, not immersion). It bends up to 20%. It is easy to transport and install.
Its dimensions are particularly convenient for cases where long and narrow surfaces are available for the installation of photovoltaic collectors.
The flexible photovoltaic collector 200W – 24V is of very high quality and has European certifications CE, ISO 2000-2001.

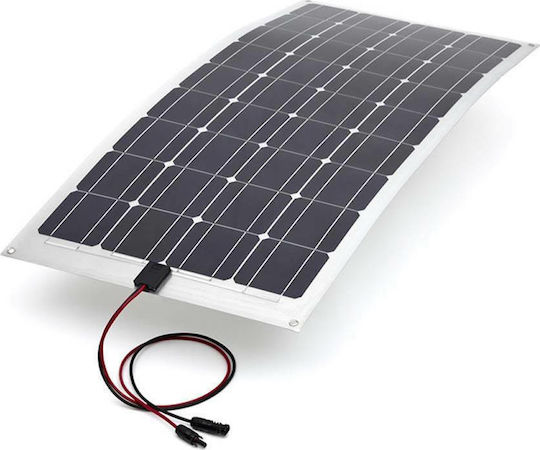

The junction box is located on the underside of the photovoltaic collector.
- Maximum Power: 200W
- Open circuit voltage (Voc): 45V
- Short Circuit Current (Isc): 6.05A
- Voltage at Maximum Power (Vmp): 36V
- Current at Maximum Power (Imp): 5.56A
- Maximum System Voltage: DC1000V
- Maximum Series Fuse: 8A
- Dimensions: 100x132x2
- Weight: 1,200 kg
- Warranty: 2 years
- ISO9001
Our company guarantees its proper functioning but DOES NOT provide technical support and assistance for its installation.
Manufacturer
OEMTechnical Specifications
- Type
- Monocrystalline
- Maximum Power
- 200 W
- Flexible
- Yes
- Maximum Voltage
- 24 V
Dimensions
- Length
- 1320 mm
- Width
- 1000 mm
- Thickness
- 20 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
