Leo Group ACm300B3 Electric Surface Water Pump Centrifugal 4hp Single-Phase
Surface Water Pumps

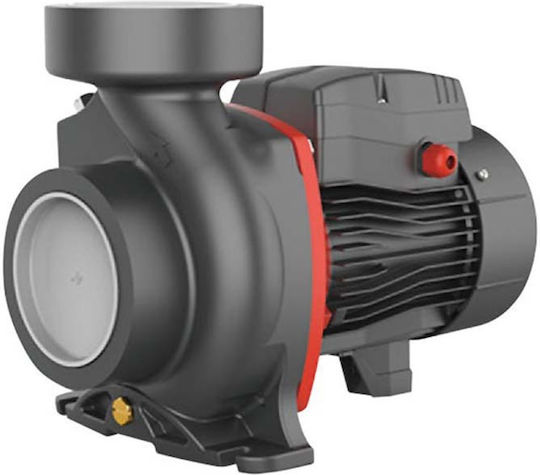

Leo Group ACm300B3 Electric Surface Water Pump Centrifugal 4hp Single-Phase Code: 01B105

The Leo Group ACm300B3 surface centrifugal pump has a low head and a cast-iron body with a bronze impeller. It is powered by a single-phase 220 V supply and has a power rating of 4 hp. The maximum...

The Leo Group ACm300B3 surface centrifugal pump has a low head and a cast-iron body with a bronze impeller. It is powered by a single-phase 220 V supply and has a power rating of 4 hp. The maximum suction lift is 8 m.

  • Pump type: Surface
  • Power supply: Electric
  • Power: 4 hp
  • Voltage: 220 V, single-phase
  • Type: Centrifugal
  • Installation: Horizontal
  • Body material:...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Single-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
294 80 €
Delivery by Mon, 09 Nov
74,00 €   shipping cost
Sent from Greece
From Aravidis 4.9 (152)
4.9 (152 reviews)
Greece
19 pieces
See Water Pumps on the page of Aravidis

Shop selection criteria

Why do we recommend buying from this shop?

We don’t only look at the price. We weigh different factors to find an offer that combines a good price, fast delivery and a reliable purchase.

  • Product price

    We calculate the total price you will pay and any discounts available from the shop.

  • Shipping & delivery time

    We check how quickly the product can be shipped and when you will receive it, based on your address.

  • Shop reliability

    We look at how often shops complete their orders successfully and how consistently they serve their customers.

  • Official reseller

    Where available, we take into account whether the shop is an official reseller of the brand.

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group ACm300B3 surface centrifugal pump has a low head and a cast-iron body with a bronze impeller. It is powered by a single-phase 220 V supply and has a power rating of 4 hp. The maximum suction lift is 8 m.

  • Pump type: Surface
  • Power supply: Electric
  • Power: 4 hp
  • Voltage: 220 V, single-phase
  • Type: Centrifugal
  • Installation: Horizontal
  • Body material: Cast iron
  • Impeller material: Bronze
  • Head: Up to 20 m
  • Suction lift: Up to 8 m
  • Maximum water temperature: 60 °C
  • Inlet and outlet ports: 3″

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01B105

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
4 hp
Manometric Head
20 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The Leo Group ACm300B3 surface centrifugal pump has a low head and a cast-iron body with a bronze impeller. It is powered by a single-phase 220 V supply and has a power rating of 4 hp. The maximum suction lift is 8 m.

  • Pump type: Surface
  • Power supply: Electric
  • Power: 4 hp
  • Voltage: 220 V, single-phase
  • Type: Centrifugal
  • Installation: Horizontal
  • Body material: Cast iron
  • Impeller material: Bronze
  • Head: Up to 20 m
  • Suction lift: Up to 8 m
  • Maximum water temperature: 60 °C
  • Inlet and outlet ports: 3″

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
01B105

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Single-Phase
Set
No

Technical Specifications

Horsepower
4 hp
Manometric Head
20 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
