Leo Group AC220B3 Electric Surface Centrifugal Pump 3hp Three-Phase
Surface Water Pumps

Leo Group AC220B3 Electric Surface Centrifugal Pump 3hp Three-Phase Code: 01B45

The Leo Group AC220B3 surface centrifugal pump is designed for pumping clean, cold water. It features a brass impeller and an anti-block system.

  • Power supply: Electric
  • Type: Centrifugal
  • Horsepower: 3...

The Leo Group AC220B3 surface centrifugal pump is designed for pumping clean, cold water. It features a brass impeller and an anti-block system.

  • Power supply: Electric
  • Type: Centrifugal
  • Horsepower: 3 hp
  • Voltage: Three-phase 380 V
  • Installation: Horizontal
  • Impeller: Brass

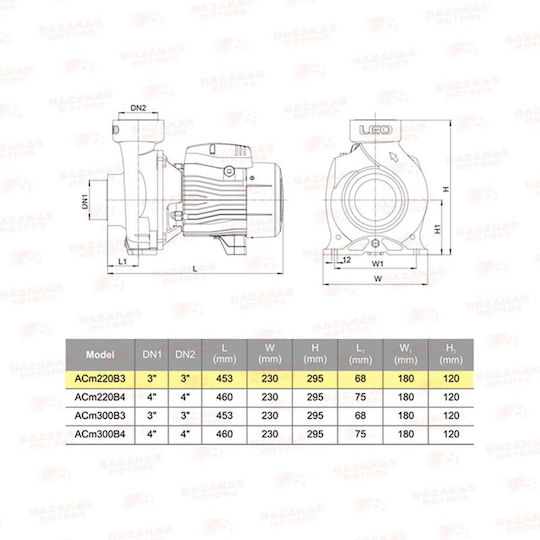

  • Ports: 3" x 3"

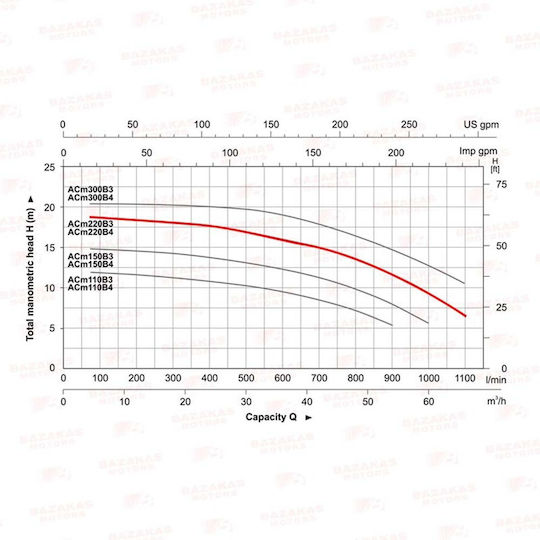

  • Maximum head: 18 m
  • Flow rate: 24.0 m³ at 17 m
  • Suitable water: Clean and...
See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Three-Phase

  • Manometric Height

    This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
276 20 €
Delivery by Mon, 09 Nov
29,00 €   shipping cost
Sent from Greece
From Aravidis 4.9 (152)
4.9 (152 reviews)
Greece
20 pieces
See Water Pumps on the page of Aravidis

Learn more about invoicing
Review the product
Product report

Description

Description

The Leo Group AC220B3 surface centrifugal pump is designed for pumping clean, cold water. It features a brass impeller and an anti-block system.

  • Power supply: Electric
  • Type: Centrifugal
  • Horsepower: 3 hp
  • Voltage: Three-phase 380 V
  • Installation: Horizontal
  • Impeller: Brass
  • Ports: 3" x 3"
  • Maximum head: 18 m
  • Flow rate: 24.0 m³ at 17 m
  • Suitable water: Clean and cold
  • System: Anti-block

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
01B45

Main Specifications

Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
3 hp
Manometric Head
18 m

Manometric Head

This is the distance from the suction point to the maximum height that the water reaches (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
