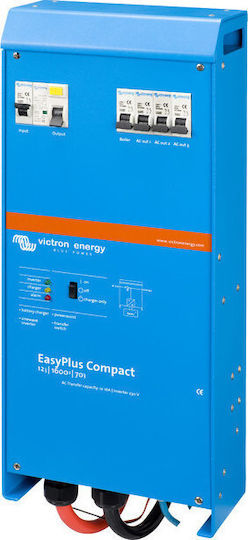

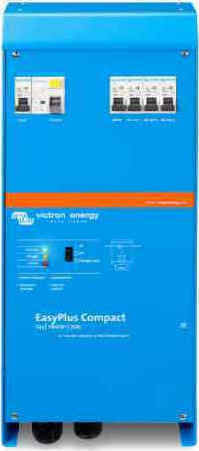

The Victron Energy EasyPlus Compact C 12/1600/70 inverter converts DC power into pure sine wave AC power and incorporates a 70 A battery charger, transfer switch and AC distribution. The system has two AC outputs and a separate output for a boiler. Adaptive four-stage charging and UPS functionality support power management.

Automatic control adapts to the loads, limiting the input current or boosting the generator when needed. If the battery voltage is low, the unit shuts down to protect the battery and restarts automatically when the voltage returns to normal levels. Monitoring and configuration via smartphone require the VE.Bus Smart dongle, while remote control is available with GX devices.

• Type: Pure sine wave
• Input voltage: 12 V
• Power supply: Single-phase
• Battery charger: 70 A
• Transfer relay: 16 A
• AC outputs: 2 and a separate output for a boiler
• Charging: Adaptive, four-stage
• UPS functionality: Yes
• Output voltage: 230 V
• Frequency: 50 Hz
• Starting power: Double peak
• Self-consumption: Low
• Connection: VE.Bus for GX devices and a computer with a dedicated Victron adapter
• Monitoring and configuration via smartphone: With VE.Bus Smart dongle
• Remote monitoring and control: With GX devices
• Battery protection: Shuts down at low voltage and restarts automatically when the voltage returns to normal levels
• Package contents: Battery temperature-sensing accessory
