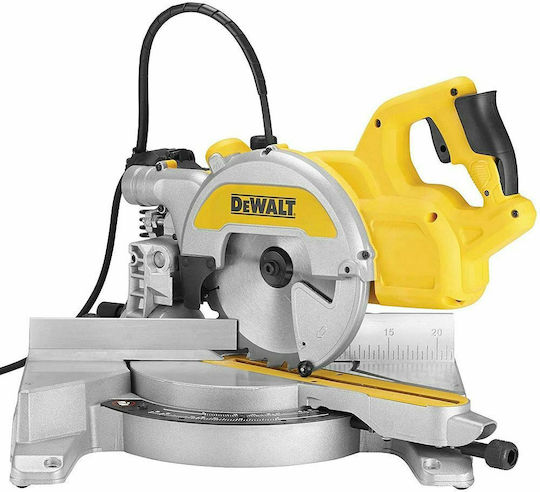

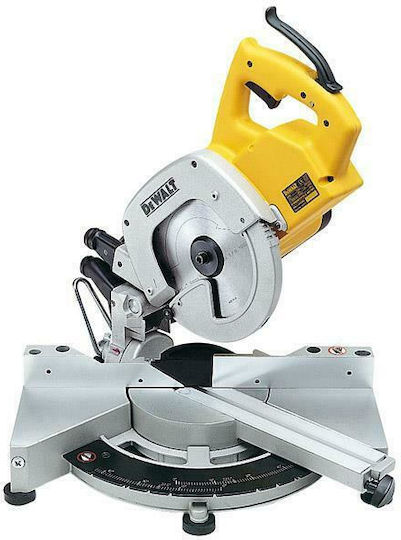

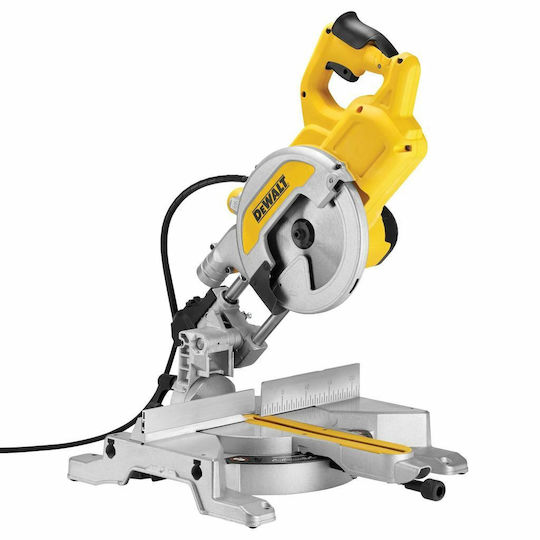

DEWALT Miter Saw Electric 1800W Sliding with Laser Cutting Guide and 216mm Disc Diameter
Miter Saws

DEWALT Miter Saw Electric 1800W Sliding with Laser Cutting Guide and 216mm Disc Diameter Code: DWS777

Key features:

  • No-load speed: 6300rpm
  • Blade diameter: 216mm
  • Inner blade diameter: 30mm
  • Miter capacity: 48°
See full description
Product report

Description

Description

  • No-load speed: 6300rpm
  • Blade diameter: 216mm
  • Inner blade diameter: 30mm
  • Miter capacity: 48°

Cuts

  • Bevel capacity (Right/Left): 50/50°
  • Cutting capacity at 90°/90° (WxH): 255x62mm
  • Cutting capacity at 90°/45° (WxH): 173x62mm
  • Cutting capacity at 45°/90° (WxH): 189x62mm
  • Cutting capacity at 45°/45° (WxH): 190x48mm


Design and Construction

  • The latest version of the classic sliding saw with improved specifications for the modern user.
  • New 1800W motor for powerful cuts in all materials.
  • XPS lighting for better visibility of the cutting point, thus increasing work accuracy.
  • Improved dust extraction.
  • The base and guide are designed to meet the precision needs of the most demanding applications.
  • The head lock function allows the head to be stabilized, limiting transverse operation for cutting applications and easy transport.
  • Fixed miter scale positions for bevel cuts at 15°, 25°, 30°, 45° and quick-release miter mechanism up to 50°.
  • Sliding left fence with measuring scale for increased material support.
  • Sliding mechanism with high cross-cutting capacity in a compact tool size, easy to transport.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
DWS777

Specifications

Power
1800 W
Power Source
Electric

Power Source

Electric
Suitable for long and demanding work.
Disc Diameter
216 mm
Cutting Speed
4500 rpm

Type / Basic Function

Dual-Purpose (Top Cut)
No

Dual-Purpose (Top Cut)

Combines 2 tools in 1. It features the classic blade at the bottom for angles and miter cuts, as well as an integrated table on the top to function as a table saw, cutting long boards lengthwise.
Sliding (Radial)
Yes

Sliding (Radial)

It features a sliding mechanism (rails) that allows the blade to glide back and forth. This dramatically increases the cutting width, making it easy to cut much wider pieces of wood, shelves, and panels.

Battery Specifications

Solo (Without Battery)
No

Features & Functions

Brushless
No

Brushless

New technology engine, without coolers, that offers greater autonomy and lifespan.
Electric Brake
No

Electric Brake

It completely stops the rotating saw blade within 2 to 3 seconds from the moment the user releases the trigger.
Dual Bevel
No

Dual Bevel

The dual bevel saves you a huge amount of time on skirting boards and moldings, since you don't need to turn the wood upside down.
Blade Shadow (XPS)
Yes

Blade Shadow (XPS)

It casts the natural shadow of the blade’s teeth exactly at the cutting point, without ever going out of adjustment.
Cutting Guide (laser)
Yes

Cutting Guide (laser)

The laser cutting guide acts as an "assistant" to the operator in order to create more precise cuts in every job.
with Dust Bag
No

with Dust Bag

Used for collecting residues during the tool's operation.
Soft Start
No

Soft Start

The smooth start function minimizes vibrations during tool startup.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (3)

Reviews

5.0
3
5.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Durability over time
  • Construction quality
  • Does it cut with absolute precision?
  • Value for money
  • Monogramma_Kalianiotis
    5
    5 out of 5 members found this review helpful
    Monogramma_Kalianiotis
    This review is about the power: 1300 W

    I bought it after burning the coil of my previous cheaper one. Flawless tool at first sight and second disc with more teeth in the package. With the first cut, you realize that you have a serious tool and how bad and dangerous the previous one was. I cut very small pieces and with the previous one, many pieces were still flying even with a clamp, not to mention that the angles were off and needed readjustment... Now I have a perfect cut without burrs and precise angles... It's a lot of money but it made my job easier and of higher quality...

    Translated from Greek ·
    • Durability over time
    • Construction quality
    • Does it cut with absolute precision?
    • Value for money
    Did you find this review helpful?
  • apox
    5
    56 out of 56 members found this review helpful
    apox

    Verified purchase

    This review is about the power: 1400 W

    I have had the miter saw for a short time. From the use I have had so far, the miter saw has great accuracy, excellent finishing on the cutting surface, and even with the blade that comes with the tool having less than 60 teeth, there is a disc available for purchase from the company, so even the most demanding user will be satisfied.
    As for the cutting capabilities, it has the same as other models that are more expensive, so it does not lack in that aspect. The more expensive models, such as the DWS777, have a more powerful motor, but for exclusively cutting wood, I don't think anyone will need a stronger motor. It had no trouble cutting spruce, showing that it has extra power.
    Excellent portability with a weight of 11.5kg, it can be carried anywhere and achieves good dimensions to be the most portable miter saw without lacking in stability. If someone also purchases the folding base from Dewalt, the DE7033, which is a mechanical engineering success, its design offers great flexibility for cutting long lengths of wood, proper positioning of the miter saw, and easy transportation since it is foldable.
    The only negative is that it does not have the ability to lock the head at different cutting depths, so if you want to create a groove for half-lap joints without cutting the entire depth of the wood but only a part of it, you will have to do it manually, but you will definitely not achieve a uniform result in depth. This function is also not available in any other miter saw from the company, apart from the more expensive models like the DWS780, which is priced at around €900. Those models that are slightly more expensive than the DWS774 also do not have this capability, so one does not lose anything by choosing this model. The instruction manual includes images for adjusting the tool and changing the blade, but unfortunately, it does not describe anything in words, which is not typical for the company, so a user who has never used a Dewalt miter saw will not be able to understand. This negative aspect can be corrected if someone downloads the instruction manual for the DWS777 from the Dewalt website, which is similar and has a detailed description of settings and operation, and thus one will understand the DWS774 as well.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    constantine62

    Verified purchase

    This review is about the power: 1400 W

    • Durability over time
    • Construction quality
    • Does it cut with absolute precision?
    • Value for money
  • Monogramma_Kalianiotis
    5
    Monogramma_Kalianiotis

    I bought it after burning the coil of my previous cheaper one. Flawless tool at first sight and second disc with more teeth in the package. With the first cut, you realize that you have a serious tool and how bad and dangerous the previous one was. I cut very small pieces and with the previous one, many pieces were still flying even with a clamp, not to mention that the angles were off and needed readjustment... Now I have a perfect cut without burrs and precise angles... It's a lot of money but it made my job easier and of higher quality...

    Translated from Greek ·
    5
  • apox
    5
    apox

    I have had the miter saw for a short time. From the use I have had so far, the miter saw has great accuracy, excellent finishing on the cutting surface, and even with the blade that comes with the tool having less than 60 teeth, there is a disc available for purchase from the company, so even the most demanding user will be satisfied.
    As for the cutting capabilities, it has the same as other models that are more expensive, so it does not lack in that aspect. The more expensive models, such as the DWS777, have a more powerful motor, but for exclusively cutting wood, I don't think anyone will need a stronger motor. It had no trouble cutting spruce, showing that it has extra power.
    Excellent portability with a weight of 11.5kg, it can be carried anywhere and achieves good dimensions to be the most portable miter saw without lacking in stability. If someone also purchases the folding base from Dewalt, the DE7033, which is a mechanical engineering success, its design offers great flexibility for cutting long lengths of wood, proper positioning of the miter saw, and easy transportation since it is foldable.
    The only negative is that it does not have the ability to lock the head at different cutting depths, so if you want to create a groove for half-lap joints without cutting the entire depth of the wood but only a part of it, you will have to do it manually, but you will definitely not achieve a uniform result in depth. This function is also not available in any other miter saw from the company, apart from the more expensive models like the DWS780, which is priced at around €900. Those models that are slightly more expensive than the DWS774 also do not have this capability, so one does not lose anything by choosing this model. The instruction manual includes images for adjusting the tool and changing the blade, but unfortunately, it does not describe anything in words, which is not typical for the company, so a user who has never used a Dewalt miter saw will not be able to understand. This negative aspect can be corrected if someone downloads the instruction manual for the DWS777 from the Dewalt website, which is similar and has a detailed description of settings and operation, and thus one will understand the DWS774 as well.

    Translated from Greek ·
    56
  • 5
    constantine62

    0
  • See all

Description & Specifications

  • No-load speed: 6300rpm
  • Blade diameter: 216mm
  • Inner blade diameter: 30mm
  • Miter capacity: 48°

Cuts

  • Bevel capacity (Right/Left): 50/50°
  • Cutting capacity at 90°/90° (WxH): 255x62mm
  • Cutting capacity at 90°/45° (WxH): 173x62mm
  • Cutting capacity at 45°/90° (WxH): 189x62mm
  • Cutting capacity at 45°/45° (WxH): 190x48mm


Design and Construction

  • The latest version of the classic sliding saw with improved specifications for the modern user.
  • New 1800W motor for powerful cuts in all materials.
  • XPS lighting for better visibility of the cutting point, thus increasing work accuracy.
  • Improved dust extraction.
  • The base and guide are designed to meet the precision needs of the most demanding applications.
  • The head lock function allows the head to be stabilized, limiting transverse operation for cutting applications and easy transport.
  • Fixed miter scale positions for bevel cuts at 15°, 25°, 30°, 45° and quick-release miter mechanism up to 50°.
  • Sliding left fence with measuring scale for increased material support.
  • Sliding mechanism with high cross-cutting capacity in a compact tool size, easy to transport.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
DWS777

Specifications

Power
1800 W
Power Source
Electric

Power Source

Electric
Suitable for long and demanding work.
Disc Diameter
216 mm
Cutting Speed
4500 rpm

Type / Basic Function

Dual-Purpose (Top Cut)
No

Dual-Purpose (Top Cut)

Combines 2 tools in 1. It features the classic blade at the bottom for angles and miter cuts, as well as an integrated table on the top to function as a table saw, cutting long boards lengthwise.
Sliding (Radial)
Yes

Sliding (Radial)

It features a sliding mechanism (rails) that allows the blade to glide back and forth. This dramatically increases the cutting width, making it easy to cut much wider pieces of wood, shelves, and panels.

Battery Specifications

Solo (Without Battery)
No

Features & Functions

Brushless
No

Brushless

New technology engine, without coolers, that offers greater autonomy and lifespan.
Electric Brake
No

Electric Brake

It completely stops the rotating saw blade within 2 to 3 seconds from the moment the user releases the trigger.
Dual Bevel
No

Dual Bevel

The dual bevel saves you a huge amount of time on skirting boards and moldings, since you don't need to turn the wood upside down.
Blade Shadow (XPS)
Yes

Blade Shadow (XPS)

It casts the natural shadow of the blade’s teeth exactly at the cutting point, without ever going out of adjustment.
Cutting Guide (laser)
Yes

Cutting Guide (laser)

The laser cutting guide acts as an "assistant" to the operator in order to create more precise cuts in every job.
with Dust Bag
No

with Dust Bag

Used for collecting residues during the tool's operation.
Soft Start
No

Soft Start

The smooth start function minimizes vibrations during tool startup.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
