The DC motor offers the capability of low-speed rotation which, combined with the winter reverse blade direction function, results in energy savings by bringing the accumulated heat from the ceiling down to the lower level of the space.
Lucci Air Airfusion Climate II ceiling fan with a diameter of 127 centimeters, featuring a DC motor and 6-speed remote control.
Up to 40% less energy consumption with DC technology.
The new Airfusion Air Climate II ceiling fan with a direct current (DC) motor uses approximately 40% less electrical energy while producing the same airflow compared to an alternating current (AC) fan.
DC Motor
The DC motor offers the capability of low-speed rotation which, combined with the winter reverse blade direction function, results in energy savings by bringing the accumulated heat from the ceiling down to the lower level of the space.
Reverse Blade Direction
With the capability of reverse blade direction operation, the fan can be used in winter to bring down the accumulated heat from the ceiling to the lower level of the space. This achieves better uniformity in the distribution of air heat, resulting in further savings on heating costs without reducing the level of comfort.
What is the benefit of the reverse blade rotation direction?
A ceiling fan operating in the reverse direction (clockwise) during winter transfers warm air from the ceiling to the lower layers of the space.
- This technique results in the circulation of warm air throughout the space, distributing heat more effectively without creating temperature stratification but rather a mixture of air with the best possible uniform temperature in the space.
- Practically, this technique yields energy savings by reducing heating costs by up to 10%.
Specifications
- Room Coverage: 13-21 m²
- Color: Brass
- Body Color: Brass
- Blade Color: Walnut
- Lighting: Optional

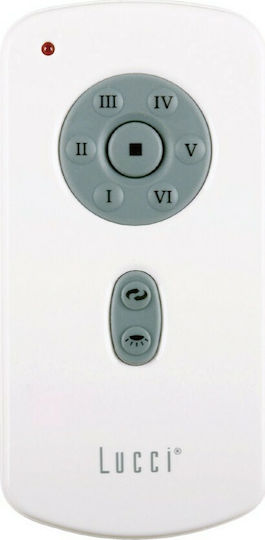

- with Wireless Remote Control
- Number of Speeds: 6
- Rotation Speed (RPM): 50 / 74 / 98 / 123 / 146 / 174
- Airflow: 156.9 mᶟ/min
- Number of Blades: 3
- Blade Type: ABS
- Motor Type: DC
- Power Consumption: 35 Watt
- Extension Rod: Optional
- with Winter Function
- Diameter: 127 cm
- Height (Ceiling to Blades): 33 cm
- Ceiling Slope (degrees): 20°
- Power Supply (Ph - V - Hz): 1-220~240V-50
- Weight: 5.9 kg
- Gross Weight: 7.5 kg
- Package Dimensions: 61.2 x 23.7 x 25.2 cm
- Warranty: 2 Years
Device Parts
1. Mounting bracket x1
2. Assembly of motor housing, downrod, bracket cover, and bracket cover screws x1
3. Blades x3
4. Blade fibers x3
5. Blade support kit x3
6. Bottom cover x1
7. Wireless remote control with wall holder x1 set
8. Extra machine screws x1 (not shown)
9. Wood screws x2 (not shown)
10. Balancing kit x1 set (not shown)
11. Screws for remote control holder x2 (not shown)
12. 12V Remote control batteries x1 (not shown)
Product Guides
- Product Number
- 210526
Design & Appearance
- Design Type
- Classic (Visible Tabs)
- Colour
- Brown
- Frame Color
- Silver
- Blade Material
- Plastic
- Number of Fins
- 3
- Children's
- No
Dimensions & Installation
- Fan Diameter
- 127 cm
- Installation on Sloped Ceiling
- Yes
Lighting
- Light Fixture
- No
- Lighting Type
- Built-in LED
- Dimmable
- No
Performance & Motor
- Motor Type
- DC
- Power
- 35 W
- Speed Levels
- 6
Control & Functions
- Remote Control
- Yes
- Timer
- Yes
- Winter Mode
- Yes
- Wi-Fi
- No
