Microscopes

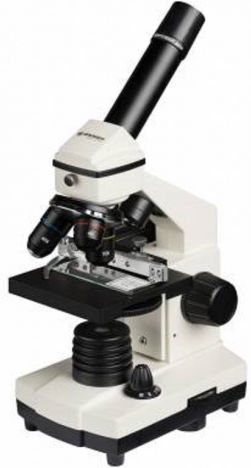

Bresser Biolux NV Digital Monocular Microscope USB 20-1280x Code: 5116200

Key features:

  • 3 objective lenses 4x/10x/40x
  • Eyepieces 5x/16x
  • Barlow lenses 2x
  • 5 transparent slides
  • 5 prepared slides
  • 3x AA batteries
  • HD camera
See full description

User Manual

190 00
Delivery by Thu, 25 Jun
14,00 €   shipping cost
Sent from Greece
From SeaLandAir
Greece
5 pieces
See Medical Equipment on the page of SeaLandAir

Description

Description

At a glance

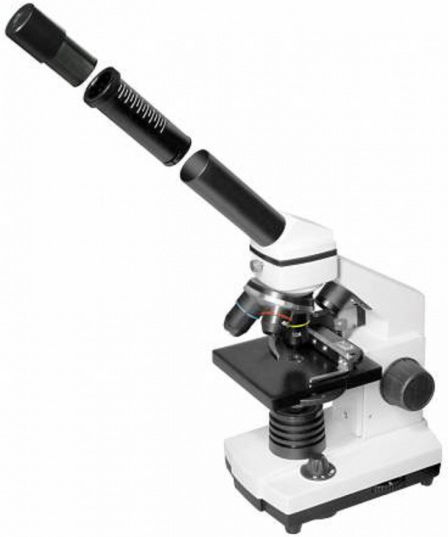

  • The BRESSER Biolux NV comes with a wide range of accessories and is the ideal microscope for beginners. A unique feature of these models is the Barlow zoom system located inside the eyepiece tubes: With the Barlow lens, the magnification can be varied by 2 times during optical observation. This feature, combined with the 3 objective lenses and the 2 interchangeable wide-field eyepieces, provides a magnification range from 20x to 1280x. With the mechanical stage, you can move your sample precisely even when observing at high magnifications.
  • For optimal illumination, a variable LED lamp for transmitted and reflected light combined with a filter wheel provides the ideal light for all samples. The top light is especially important for observing opaque samples such as leaves, small insects, and many more. This makes microscopy very easy for beginners! Power is supplied by batteries (3x AA). Included are a dust cover, 5 prepared slides, and 5 blank slides with covers to create your own samples.
  • With the included HD camera, you can observe your samples on your computer screen and record images and videos with the provided Windows software. The software is compatible with Windows 10 and 11. With this camera, you can always capture your interesting observations and share them with others.

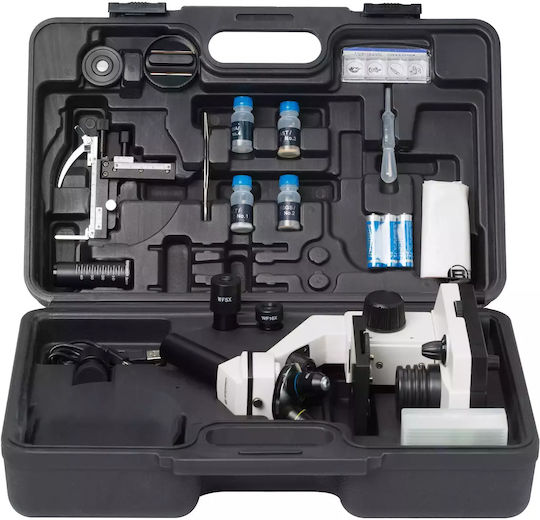

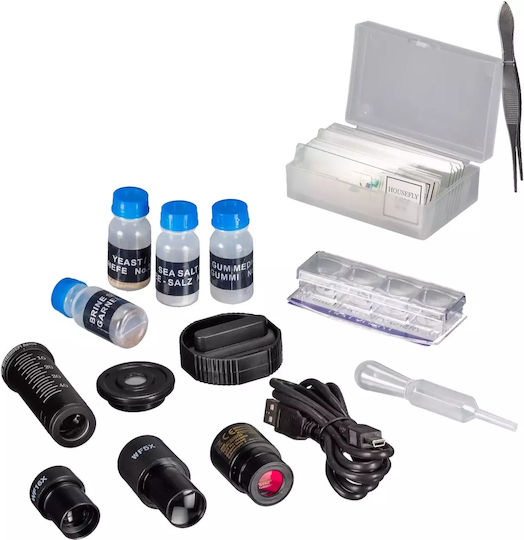

Includes

  • 2 eyepieces: 5x and 16x
  • 3 objective lenses: 4x, 10x and 40x
  • 5 prepared slides
  • 5 blank slides
  • Dust cover and hard case

Specifications

  • Batteries included: No
  • Required batteries: 3x AA (Mignon), 1.5V
  • Body material: Metal / Plastic
  • Case: Plastic case
  • Color: Beige
  • Continuous zoom: No
  • Magnification from: 20x
  • Magnification up to: 1280x
  • Optical design: Biological
  • View: Monocular (single lens)
  • Rheostat (Dimmer): Adjustable lighting and switch for top and bottom lighting
  • Lighting type: Adjustable, LED
  • Lighting: Top and bottom (transmitted and incident light)
  • Electronic eyepiece: 1280x720 Pixels (HD)
  • Image formats: JPG
  • Video formats: AVI
  • Interfaces: USB 2.0
  • Mechanical stage: Yes
  • XY stage: Simple XY stage
  • Eyepiece tube diameter (mm): 20
  • Focusing system: Simple (coarse focusing)
  • Diopter adjustment capability: No

System Requirements

  • Operating systems: Windows 10, Windows 11
  • 1 GB RAM
  • 2 GHz Processor
  • Optical drive (CD or DVD)
  • USB 2.0 port

Dimensions & Weight

  • Total height (mm): 270
  • Total length (mm): 150
  • Total width (mm): 105
  • Net weight (with accessories): 1100 g

Manufacturer

See full description

Specifications

Specifications

Product Guides

User Manual

Product Number
5116200

Specifications

Type
Digital
Educational
No
Magnification
Yes
Head
Monocular
Magnification (x)
20-1280 x
Lenses
10x, 40x, 4x
Lighting
LED
USB
Yes

External Dimensions

Width
15 cm
Length
10.5 cm
Height
27 cm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
