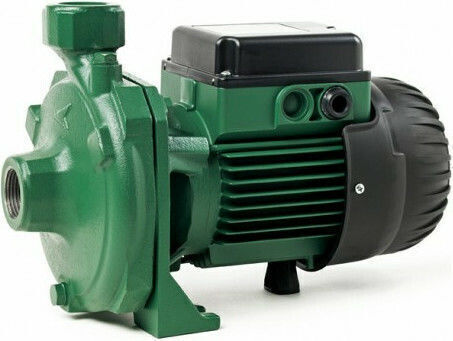

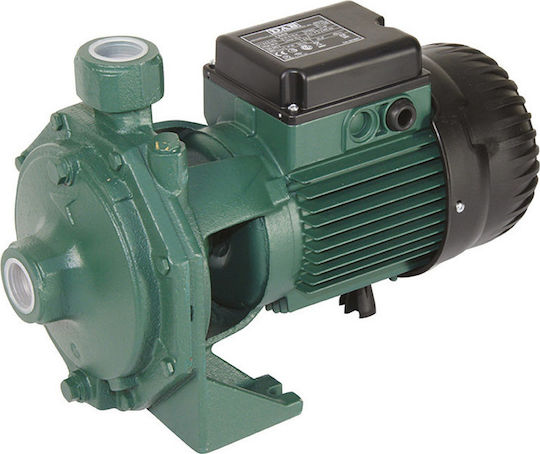

DAB K 35-40 T Electric Surface Water Pump Centrifugal 1hp Three-Phase
Surface Water Pumps

DAB K 35-40 T Electric Surface Water Pump Centrifugal 1hp Three-Phase

The DAB K 35-40 T surface centrifugal pump has a maximum flow rate of 4.8 m³/h and a maximum head of 43.5 m. It is a two-stage, horizontally mounted pump with a three-phase power supply of 400 V - 50...

The DAB K 35-40 T surface centrifugal pump has a maximum flow rate of 4.8 m³/h and a maximum head of 43.5 m. It is a two-stage, horizontally mounted pump with a three-phase power supply of 400 V - 50 Hz.

Its body is made of cast iron and its impeller of Technopolymer. It is suitable for pumped liquids with temperatures from -10 °C to 50 °C and has a maximum...

See full description See full description

Top specs

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly

  • Centrifugal

    Pumps with impellers that enhance water flow.
  • Voltage Three-Phase

  • Flow rate

    The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.
  • See all
345 00 €
Delivery by Mon, 09 Nov
86,00 €   shipping cost
Sent from Greece
From Lamas
Greece
2 pieces
See Water Pumps on the page of Lamas

Learn more about invoicing
Review the product
Product report

Description

Description

The DAB K 35-40 T surface centrifugal pump has a maximum flow rate of 4.8 m³/h and a maximum head of 43.5 m. It is a two-stage, horizontally mounted pump with a three-phase power supply of 400 V - 50 Hz.

Its body is made of cast iron and its impeller of Technopolymer. It is suitable for pumped liquids with temperatures from -10 °C to 50 °C and has a maximum operating pressure of 6 bar.

  • Type: Two-stage centrifugal
  • Power supply: Electric
  • Power: 1 hp (0.75 kW)
  • Voltage: Three-phase, 400 V - 50 Hz
  • Installation: Horizontal
  • Maximum flow rate: 4.8 m³/h
  • Maximum head: 43.5 m
  • Inlet port: 1″
  • Outlet port: 1″
  • Body material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From -10 °C to 50 °C
  • Maximum operating pressure: 6 bar
  • Weight: 15.9 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Flow Rate
8 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Description & Specifications

The DAB K 35-40 T surface centrifugal pump has a maximum flow rate of 4.8 m³/h and a maximum head of 43.5 m. It is a two-stage, horizontally mounted pump with a three-phase power supply of 400 V - 50 Hz.

Its body is made of cast iron and its impeller of Technopolymer. It is suitable for pumped liquids with temperatures from -10 °C to 50 °C and has a maximum operating pressure of 6 bar.

  • Type: Two-stage centrifugal
  • Power supply: Electric
  • Power: 1 hp (0.75 kW)
  • Voltage: Three-phase, 400 V - 50 Hz
  • Installation: Horizontal
  • Maximum flow rate: 4.8 m³/h
  • Maximum head: 43.5 m
  • Inlet port: 1″
  • Outlet port: 1″
  • Body material: Cast iron
  • Impeller material: Technopolymer
  • Pumped liquid temperature: From -10 °C to 50 °C
  • Maximum operating pressure: 6 bar
  • Weight: 15.9 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information

Main Specifications

Type
Double Stage

Type

Double Stage
They have dual propellers that work together to pump the relevant process fluids. They are adjustable to send water either with more pressure or in a larger volume.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
Yes

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1 hp
Flow Rate
8 m³/h

Flow Rate

The amount of water that the pump can provide. For example, 6m³/h is equivalent to 100 liters/minute.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
