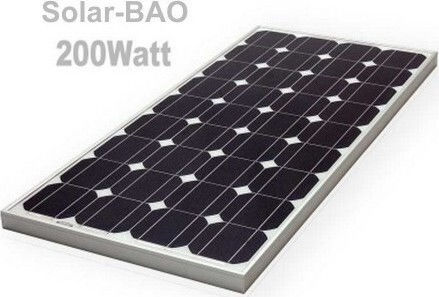

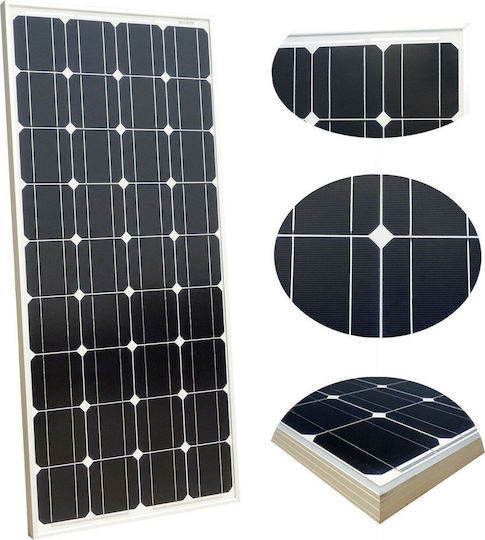

The BAO-200 monocrystalline solar panel delivers a maximum rated power of 200 W and features an aluminum frame. It is designed for off-grid solar systems, battery installations, caravans, and holiday homes. Charging batteries requires a suitable charge controller; the panel must not be connected directly to the battery.
- Type: Monocrystalline
- Maximum power: 200 W
- Maximum power voltage (Vmp): 20.2 V
- Maximum power current (Imp): 9.95 A
- Open-circuit voltage (Voc): 25.6 V
- Short-circuit current (Isc): 10.9 A
- Power tolerance: ±5%
- Frame: Aluminum
- Length: 1580 mm
- Width: 808 mm
- Thickness: 35 mm
- Weight: 15.8 kg
- Measurement conditions: Standard Test Conditions (STC)
Manufacturer
OEMTechnical Specifications
- Type
- Monocrystalline
- Maximum Power
- 200 W
- Flexible
- No
- Maximum Voltage
- 24 V
Dimensions
- Length
- 1580 mm
- Width
- 808 mm
- Thickness
- 35 mm
