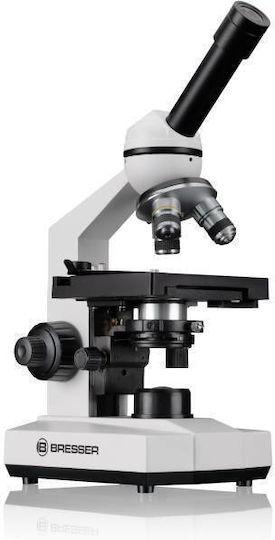

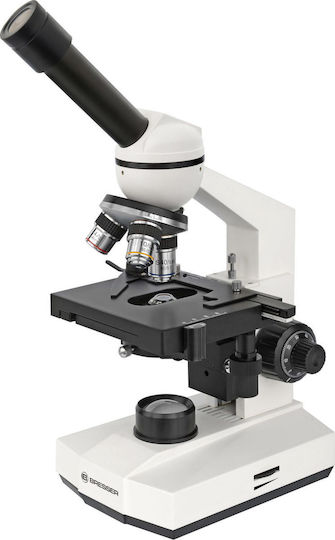

The Bresser Erudit Basic Mono biological microscope offers 40x, 100x and 400x magnification for observing thin sections, microorganisms from pond water and blood smears. The DIN achromatic objective lenses produce detailed images, while the 40x objective has a spring-loaded mechanism to reduce the risk of damaging the specimen or lens. The LED illumination is battery-powered, allowing you to use the microscope outdoors.

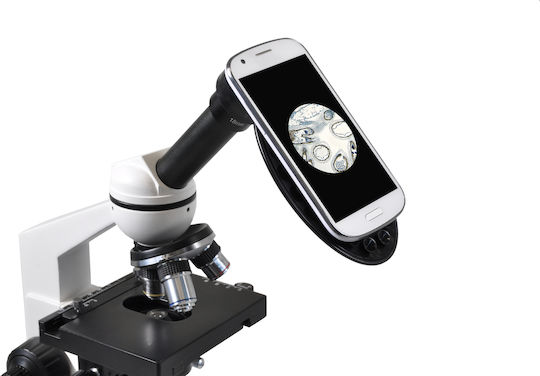

Focusing is coaxial, with coarse and fine adjustment. The microscope features a mechanical stage, an adjustable Abbe condenser with diaphragm and filter holder, and a 360° rotating eyepiece tube. A smartphone adapter and carrying case are included.
- Type: Biological
- Head: Monocular
- Magnification: 40x, 100x, 400x
- Objective lenses: DIN achromatic 4x, 10x and 40x
- Eyepiece: WF 10x
- Illumination: Battery-powered LED
- Focusing: Coaxial, coarse and fine
- Mechanical stage: Coaxial
- Condenser: Adjustable Abbe N.A. 1.25, with diaphragm and filter holder
- Eyepiece tube: Diameter 23.2 mm, field number 18 mm, 360° rotation
- Dimensions: 23.5 × 16.8 × 35.2 cm
- Package contents: Microscope body with LED illumination, WF 10x eyepiece, DIN achromatic 4x, 10x and 40x objective lenses, Abbe condenser, smartphone adapter, carrying case, box of prepared slides, blank slides and coverslips
- Product Number
- 5102100
Specifications
- Type
- Biological
- Educational
- No
- Magnification
- Yes
- Head
- Monocular
- Magnification (x)
- 40-400 x
- Lenses
- 10x, 40x, 4x
- Lighting
- LED
- USB
- No
External Dimensions
- Width
- 23.5 cm
- Length
- 16.8 cm
- Height
- 35.2 cm
