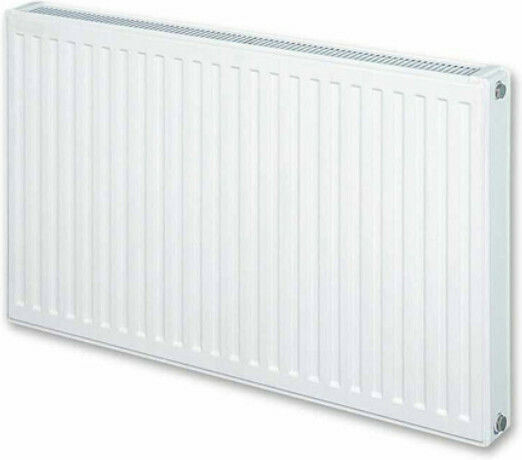

- The Panel Kompakt Vienna Line radiators by VOGEL & NOOT are manufactured in Austria with high-quality specifications.
- The production process for all types of construction is ISO certified.
- The quality and performance characteristics of the radiators are continuously tested and certified by recognized European organizations.
- VOGEL & NOOT radiators are characterized by their elegant appearance, functionality, and durability over time.
- They are made from 1.25 mm thick cold-rolled steel sheet, meeting the strictest European standards.
- Each radiator is tested at a test pressure of 10 bar, while the maximum allowable operating conditions are 7.7 bar and 120°C temperature.
- For special constructions, the test pressure at the factory can be increased to 13 bar and the operating pressure to 10 bar.
- The cleaning, paint preparation, and final painting processes are carried out according to DIN 55900 specifications, while their performance has been certified according to DIN 4704 and BS EN 442 specifications.
- Their length starts from 400 mm and can reach up to 3000 mm (radiators with a length of 2200 mm to 3000 mm are made to order) to meet any application.
- The smart packaging method of the radiators allows for installation with the outer casing, thus providing full protection until the completion of all constructions.
- All necessary brackets and components for their suspension are included in their packaging.
- Type
- Panel
- Heating Efficiency (kcal/h)
- 1311 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 22
- Colour
- White
- Height
- 900 mm
- Length
- 520 mm
