- High thermal performance
- The outputs are displayed in kcal/h for supply temperatures of 90°C and return temperatures of 70°C
- The price of the unit includes plugs, air vent, and brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
Description
Specifications

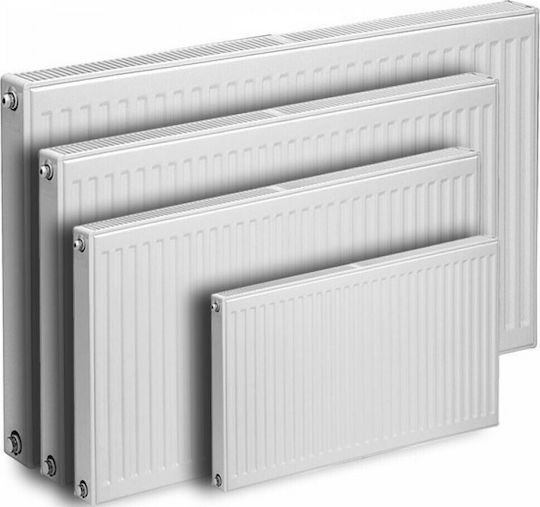

Steel radiators are elegantly designed and manufactured according to DIN EN 442. They feature high-quality electrostatic polyester powder coating at 200°C, in white color RAL 9010, after a very gradual phosphating and degreasing process.
Features
- High thermal performance
- The outputs are displayed in kcal/h for supply temperatures of 90°C and return temperatures of 70°C
- The price of the unit includes plugs, air vent, and brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
External loop panel
In external loop heating panels, the switch fits on one side of the body and has an external tube that connects the top to the bottom of the radiator.

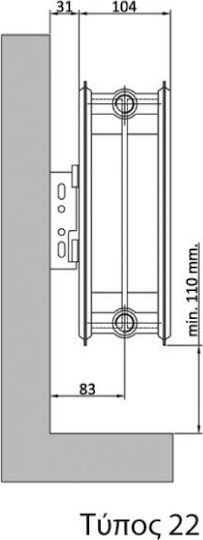

Column Type
The column type is denoted by the number 22 (double column), which means it has 2 water-bearing columns and 2 meanders welded to increase the heated surface area.
The total body thickness is 10.5 cm.
How to choose the right radiator size?
It is very important to make the right choice of radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating losses. Incorrect selection of the radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.
How is the calculation of radiator calories per square meter done?
A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room in meters. Then, multiply the result by the number 50, which approximately represents potential losses.
However, be careful this calculation method is indicative and does not replace the study that an engineer will conduct, which will be absolutely accurate.
- Type
- Panel
- Heating Efficiency (kcal/h)
- 3932 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 22
- Colour
- White
- Height
- 600 mm
- Length
- 2000 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
