- High thermal performance
- The performances are displayed in kcal/h for flow temperatures of 90°C and return temperatures of 70°C
- The price of the body includes plugs, air vent, brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
Description
Specifications

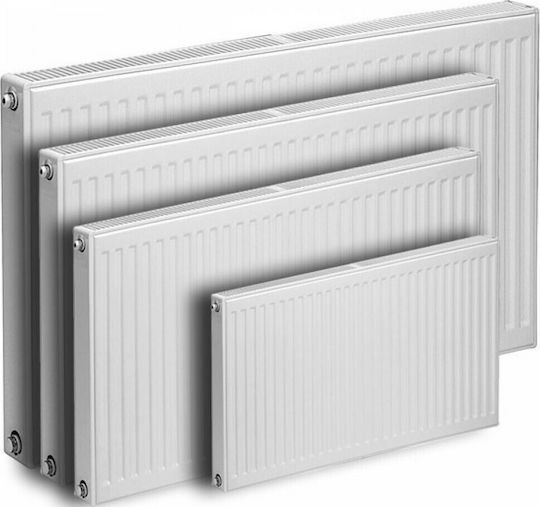

Steel radiators are designed with elegance and manufactured according to DIN EN 442. They feature high-quality electrostatic, polyester powder coating at 200°C, in white color RAL 9010, after a gradual phosphating and degreasing process.
Compatible with:
- High thermal performance
- The performances are displayed in kcal/h for flow temperatures of 90°C and return temperatures of 70°C
- The price of the body includes plugs, air vent, brackets
- Test pressure: 13 bar
- Operating pressure: 10 bar
- Color RAL 9010
- Italian design
External loop panel
In panel radiators, the switch enters with one side of the body and has an external tube that connects the top with the bottom of the radiator.
Type of radiators

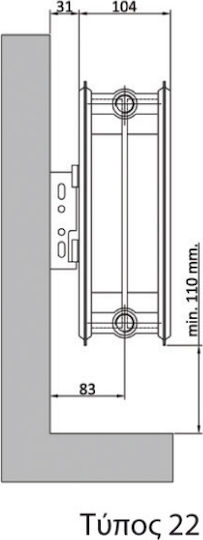

The type of columns is represented by the number 22 (double column), which means it has 2 hydraulic columns and 2 welded collectors to increase the heated surface.
The total thickness of the body is 10.5 cm.
How to choose the right radiator size?
It is very important to make the right choice of the radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating losses. The wrong choice of radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.
How is the calculation of radiator calories per square meter done?
A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room, in meters. Then, multiply the result by the number 50, which represents an approximate estimate of possible losses.
However, this calculation method is indicative and does not replace the study that an engineer will conduct, which will be completely accurate.
- Type
- Panel
- Heating Efficiency (kcal/h)
- 2161 kcal/h
- Installation Type
- External Loop
- Type of Columns
- 22
- Colour
- White
- Height
- 900 mm
- Length
- 800 mm
