It is important to understand what performance is and what ratings actually mean. The performance rating shows how much energy is maintained or lost during its transfer from the wall to your components. It does not indicate the overall quality of the power supply. A power supply does not need an 80 PLUS Gold rating to be safe and reliable. And a power supply with an 80 PLUS Gold rating does not necessarily have any of these things. The MWE White guarantees a standard 85% performance while being safe and reliable at the same time.
Description
Specifications
80 Plus Standard Certification
It is important to understand what performance is and what ratings actually mean. The performance rating shows how much energy is maintained or lost during its transfer from the wall to your components. It does not indicate the overall quality of the power supply. A power supply does not need an 80 PLUS Gold rating to be safe and reliable. And a power supply with an 80 PLUS Gold rating does not necessarily have any of these things. The MWE White guarantees a standard 85% performance while being safe and reliable at the same time.
DC to DC Circuit
Power is supplied at multiple voltage levels. The wall provides power at one voltage level, but your components need a specific voltage to operate correctly. The process of converting raw power from the wall to the multiple voltage levels that your components need requires special components to complete this process quickly, efficiently, and safely. The DC-to-DC + LLC technology of the MWE Bronze was carefully designed to achieve this goal. The Dual Forward circuit layout is designed to convert 12V power to 3V and 5V levels with minimal ripple noise, 80 PLUS Bronze efficiency, and reduced risk to your connected hardware.
Silent Operation

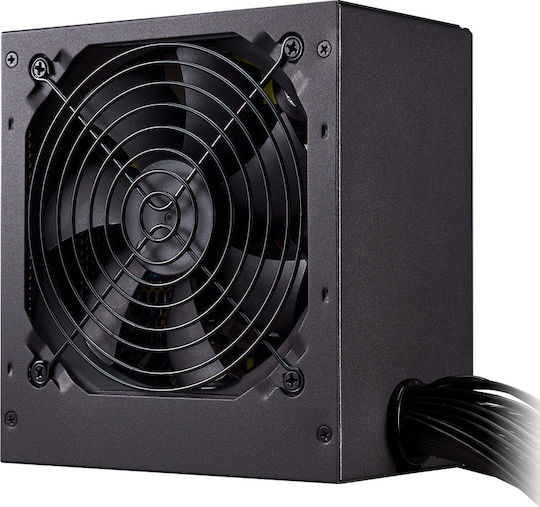

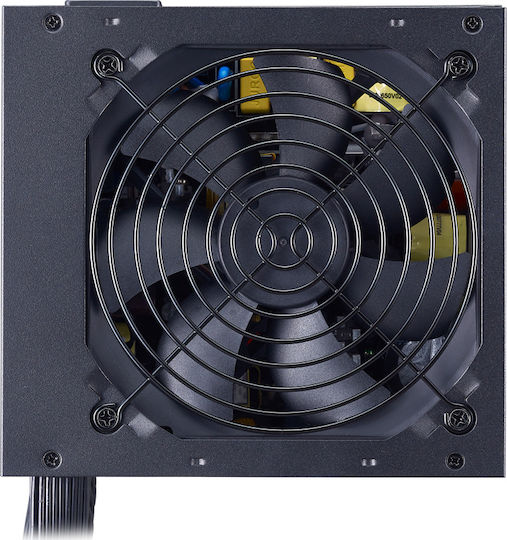

The ongoing struggle between cooling and noise is as old as the consumer computing industry itself. Keeping your components cool without having to listen to them while you work remains one of the greatest challenges for all fan-based cooling technologies. The MWE Bronze addresses this issue with a 120mm HDB fan. The fan's hydro-dynamic bearing creates less friction, making it ideal for low-speed operations. This technology keeps the fan running smoothly and efficiently for longer periods of time, keeping noise levels low and extending the lifespan of the power supply.

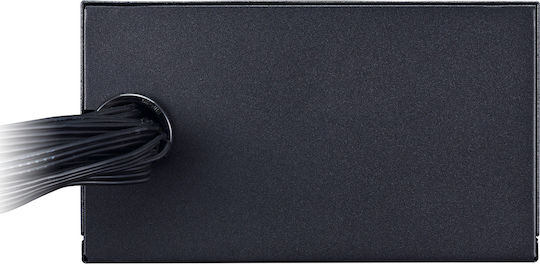

Flat, Black Cables
For many who have aesthetics in mind, wiring can be one of the most annoying parts of assembling a computer. Cables can be confusing, too short or too long, and almost never look good. The MWE Bronze uses flat and flexible black cables to help address these issues. These cables are more discreet and flexible, making it easier to apply them to your system while taking up less space. This is particularly useful for smaller cases and maintaining airflow.
The MWE Bronze V2 offers a simple, reliable way to power your system safely and efficiently at a low cost. The 80 PLUS Bronze efficiency rating, DC-to-DC + LLC circuit design, single +12V rail, active PFC, and temperature-sensitive HDB fan provide a power supply unit that remains true to its original purpose. This power supply will handle all your basic computing needs without any of the hassle or challenges of additional special features, software synchronization, or other bells and whistles. Simply plug it into your system and get to work. For an exceptional mid-level computing experience, you can't go wrong with the MWE Bronze V2.
Protection Technologies
The MWE provides complete standard protection (OCP/OVP/UVP/SCP/OPP) as well as integrated protection against overheating (OTP). These additional safety measures minimize the risk of damage to your system from power outages.
Connections:
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector.
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities.
- 6x SATA power connectors for SSD or HDD hard drives.
- 3x Molex 4-pin connectors for connecting additional peripherals.
Dimensions
- Power
- 550 W
- Size
- ATX
- Modularity
- Full Wired
- Certification
- 80 Plus Standard
- Fan Dimension
- 120 mm
- Power Protection
- Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Color
- White
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
