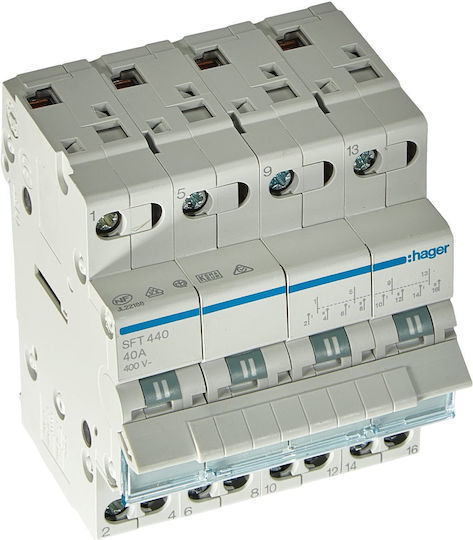

Hager 4-Poles General Use Panel Push Button Switch 400V 40A

Key features:

  • Command Type: Transfer
  • Number of Poles: 4 P
  • Voltage: 250 V
  • Current: 40 A
See Description & Specifications

Learn more about invoicing

Reviews (3)

Reviews

  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product

Description & Specifications

The Hager SFT440 four-pole DIN rail switch is a changeover switch with three positions (I-0-II) and a central OFF position. It has top-mounted supply connections.

  • Type: General purpose
  • Number of poles: 4
  • Positions: 3 (I-0-II)
  • Rated voltage: 400 V
  • Rated current: 40 A
  • Number of modules: 4
  • Rated insulation voltage Ui: 440 V
  • Rated impulse withstand voltage Uimp: 4,000 V
  • Frequency: 50/60 Hz
  • Total power loss: 8.4 W
  • Mechanical endurance: 200,000 cycles
  • Operating temperature: -20 to 50 °C
  • Storage temperature: -40 to 80 °C
  • Height: 83 mm
  • Width: 70 mm
  • Depth: 71 mm

Manufacturer

Specifications

Panel Switches Type
General Use
Number of Poles
4
Nominal Voltage
400 V
Rated Voltage
40 A

Features & Functions

WiFi
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
