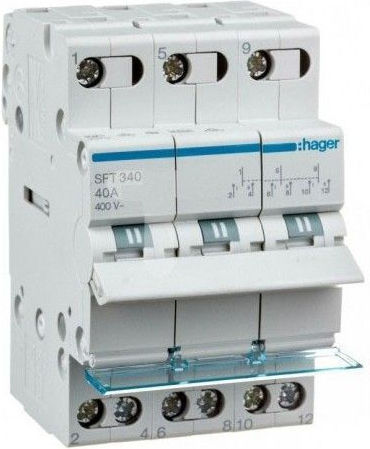

The Hager SFT340 three-pole rail-mounted switch switches between three operating positions: I-O-II. It has a rated current of 40 A and a rated voltage of 400 V.
- Type: General purpose
- Number of poles: 3
- Operating positions: 3 (I-O-II)
- Rated current: 40 A
- Rated switching voltage: 230/400 V AC
- Rated insulation voltage: 440 V
- Rated impulse withstand voltage: 4000 V
- Rated frequency: 50/60 Hz
- Connection type: Screw connection
- Number of modules: 3
- Total power loss at rated current: 6.3 W
- Mechanical endurance: 200,000 cycles
- Stranded conductors: 1.5–10 mm²
- Solid conductors: 1.5–16 mm²
- Operating temperature: -20 to 50 °C
- Storage temperature: -40 to 80 °C
- Height: 83 mm
- Width: 52.5 mm
- Depth: 70 mm
Specifications
- Panel Switches Type
- General Use
- Number of Poles
- 3
- Nominal Voltage
- 400 V
- Rated Voltage
- 40 A
Features & Functions
- WiFi
- No
