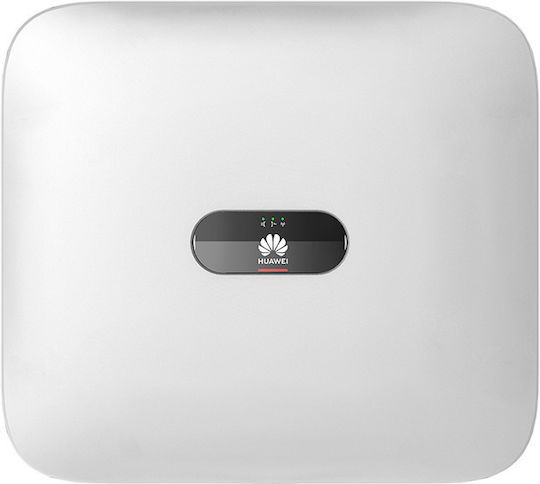

The Huawei SUN2000-10KTL-M1 inverter is a three-phase hybrid inverter for photovoltaic systems with storage batteries. It is compatible with Huawei Smart String ESS batteries with a capacity of 5–30 kWh and supports charging and discharging at up to 10,000 W. The maximum photovoltaic input power is 15,000 W, and it operates across a voltage range of 140–980 V, with a maximum input voltage of 1,100 V and two independent MPPT trackers.

Its maximum efficiency is 98.6%, with a European efficiency of 98.1%. It supports backup power operation via the Huawei Backup Box (B1), providing up to 3,300 VA for critical loads during a power outage. It includes anti-islanding, AC/DC Type II overvoltage, short-circuit, residual-current, arc-fault detection, and insulation monitoring protections, as well as PID Recovery technology to prevent photovoltaic panel degradation.

• Type: Hybrid inverter
• Rated power: 10,000 W
• Maximum output power: 11,000 VA
• Power supply: Three-phase
• Rated input voltage: 600 V
• Maximum input voltage: 1,100 V
• Operating voltage range: 140–980 V
• Maximum photovoltaic input power: 15,000 W
• Number of MPPT trackers: 2 independent
• Maximum efficiency: 98.6%
• European efficiency: 98.1%
• Compatibility: Huawei Smart String ESS 5–30 kWh
• Backup power operation: Via Huawei Backup Box (B1), up to 3,300 VA
• Protections: Anti-islanding, AC/DC Type II overvoltage, short circuit, residual current, arc-fault detection, and insulation monitoring
• Technology: PID Recovery
• Protection rating: IP65

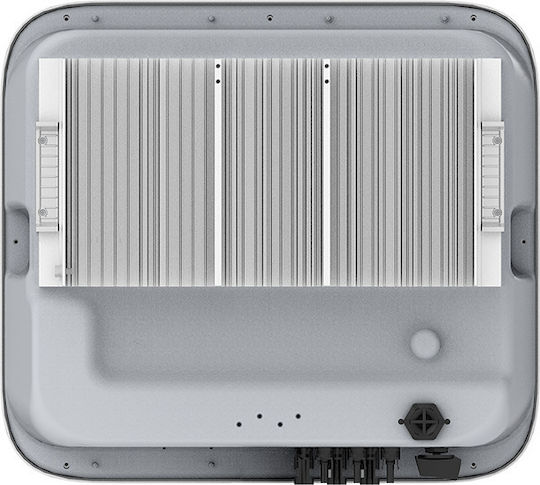

• Cooling: Natural air convection

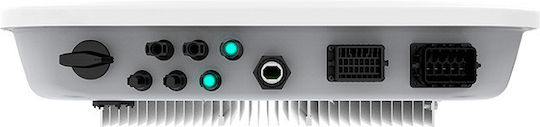

• Communication: RS485, WLAN, Ethernet, 4G/3G (optional), FusionSolar App
• Weight: 17 kg
• Dimensions: 525 × 470 × 146.5 mm
