Description
Specifications

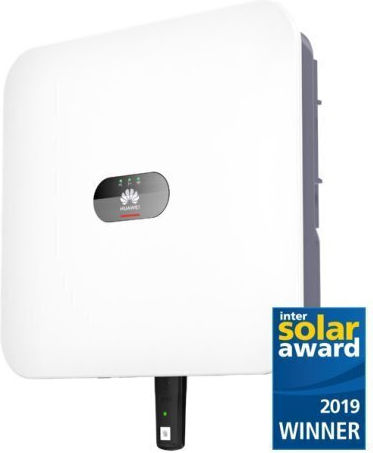

The Huawei SUN 2000-10KTL-M1 is a high-quality inverter with advanced features. It has 2 MPP trackers with a high efficiency of 98.6% and PID FusionSolar technology. The inverter is IP65 certified, providing protection against dust and water.
It is compatible with the HUAWEI Smart String ESS 5kWh - 30kWh and has an operating voltage range from 600 V to 980 V. The maximum operating current is 16.7 A, with a maximum charging and discharging power of 10,000 W.
It includes various protection features, such as:
- Anti-islanding protection
- DC reverse polarity protection
- Insulation monitoring
- AC overcurrent protection
- AC short circuit protection
- AC surge protection
- Arc fault protection
The maximum input voltage is 1100 V, and the nominal input voltage is 600 V. It supports a maximum of 1 input per MPP tracker and has 2 MPP trackers. The operating temperature range is from -25°C to 60°C. The inverter has compact dimensions of 525 x 470 x 147 mm and a weight of 17 kg.
It meets various grid connection specifications and has LED indicators for easy monitoring. It supports RS485 and WLAN/Ethernet connection via Smart Dongle-WLAN-FE, as well as optional 4G/3G/2G connection via Smart Dongle-4G. The recommended maximum PV power is 15,000 Wp. It is designed for three-phase systems and has a white color. The nominal AC grid frequency is 50 Hz / 60 Hz.
- Rated power
- 10000 W
- Nominal Input Voltage
- 380 V
- Power supply
- Three-Phase
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
