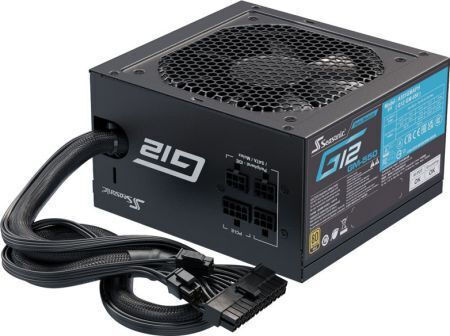

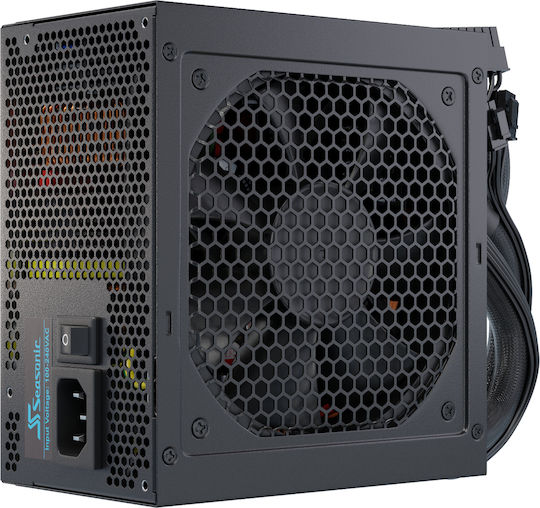

Seasonic G12 GM 550W Black Computer Power Supply Semi Modular 80 Plus Gold
Power Supplies

Seasonic G12 GM 550W Black Computer Power Supply Semi Modular 80 Plus Gold

Power Management

  • Total power: 550W
  • AC input voltage: 100 - 240V
  • AC input frequency: 50/60Hz
  • Input operating current: 10A
  • Combined power (+3.3V): 100W
  • Combined power (+12V): 540W
  • Combined power (+5V):...

Power Management

  • Total power: 550W
  • AC input voltage: 100 - 240V
  • AC input frequency: 50/60Hz
  • Input operating current: 10A
  • Combined power (+3.3V): 100W
  • Combined power (+12V): 540W
  • Combined power (+5V): 100W
  • Combined power (-12V): 3.6W
  • Combined power (+5Vsb): 12.5W
  • Maximum output current (+3.3V): 20A
  • Maximum output current (+12V): 45A
  • Maximum output current...
See full description See full description

  • Type

    Specifies the size and compatibility with the computer case. The most common types are ATX for standard cases, SFX and TFX for small or slim systems, and EPS for powerful setups or servers.

    ATX

    The most common power supply size, compatible with most mid and full tower cases.
  • Certification 80 Plus Gold

  • Fan Dimension

    The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter the power supply operation. The most common size is 120mm, with some power supplies reaching up to 140mm.
  • See all
The product is not available at Skroutz Last updated: 9 months ago
Product report

Description

Description

Power Management

  • Total power: 550W
  • AC input voltage: 100 - 240V
  • AC input frequency: 50/60Hz
  • Input operating current: 10A
  • Combined power (+3.3V): 100W
  • Combined power (+12V): 540W
  • Combined power (+5V): 100W
  • Combined power (-12V): 3.6W
  • Combined power (+5Vsb): 12.5W
  • Maximum output current (+3.3V): 20A
  • Maximum output current (+12V): 45A
  • Maximum output current (+5V): 20A
  • Maximum output current (-12V): 3.6A
  • Maximum output current (+5Vsb): 2.5A
  • Power protection features: Over current, Over voltage, Short circuit

Connectivity

  • Motherboard power connector: 20+4 pin ATX
  • Peripheral (Molex) power connectors (4-pin): 3
  • Motherboard power cable length: 550mm
  • Number of SATA power connectors: 6
  • Peripheral (Molex) power cable length: 690mm
  • PCI Express power connectors (6+2 pin): 2
  • PCI Express power cable length: 700mm
  • Cabling type: Semi-Modular

Performance

  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • 80 PLUS certification: 80 PLUS Gold
  • Bearing technology: Sleeve
  • MTBF rate: 100000h
  • Certifications: ISVcTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH

Design

  • Product color: Black
  • Cooling type: Active
  • Fan diameter: 120mm
  • Number of fans: 1
  • On/off switch: YES

Environmental Conditions

  • Operating temperature range: 0 - 50°C

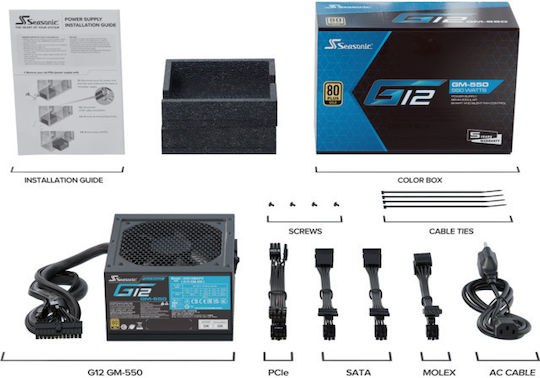

Package Contents

  • Cables included: AC, PCIe, Peripheral (Molex), SATA
  • Cable(s) included: YES

Weight and Dimensions

  • Width: 150mm
  • Depth: 140mm
  • Height: 86mm

Packaging Data

  • Package type: Box

Technical Details

  • Sustainability certificates: RoHS

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Power
550 W
Size
ATX

Size

Specifies the size and compatibility with the computer case. The most common types are ATX for standard cases, SFX and TFX for small or slim systems, and EPS for powerful setups or servers.

ATX
The most common power supply size, compatible with most mid and full tower cases.
Modularity
Semi Modular

Modularity

Describes the degree to which power cables are detachable. Modular power supplies allow for the use of only necessary cables, resulting in better aesthetics and airflow.

Semi Modular

Some cables are detachable from the power supply. 2.

Some cables are detachable from the power supply.


It helps with a more organized assembly with better aesthetic results and airflow.
Certification
80 Plus Gold
Fan Dimension
120 mm

Fan Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter the power supply operation. The most common size is 120mm, with some power supplies reaching up to 140mm.
Power Protection
Over Current Protection (OCP), Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP)

Power Protection

The various types of protection that the power supply has.

Over Current Protection (OCP)

Protects connected devices from excessive current intensity.

Over Power Protection (OPP)
Protects the power supply if its nominal power is exceeded.
Over Voltage Protection (OVP)

Protects connected devices from excessive voltage.

Short Circuit Protection (SCP)

Protects the power supply from short circuit.
Color
Black

ATX Version

ATX 3.1
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (15)

Reviews

4.9
15
4.9
Review this product
  1. 14
  2. 1
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Cable management
  • Quality construction
  • Durability
  • Value for money
  • Operational stability
  • Silent
  • Number of connections
  • Ilias R.
    5
    Ilias R.

    Verified purchase

    This review is about the power: 850 W

    I have had it for about a year and a half, it hasn't shown any problems. Very high quality. I highly recommend it.

    Translated from Greek ·
    Did you find this review helpful?
  • agg67
    5
    agg67

    Verified purchase

    This review is about the power: 650 W

    I have no complaints so far, it was bought for around 60 anyway, in the long run it will show if it is good, otherwise very value for money and a good and quality power supply

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Jim Pal

    Verified purchase

    This review is about the power: 850 W

    I would buy it again

    Translated from Greek ·
    • Cable management
    • Quality construction
    • Durability
    • Value for money
    • Operational stability
    • Moderate noise
    • Number of connections
    Did you find this review helpful?
  • 4
    1 out of 3 members found this review helpful
    Leonidas_Sp

    Verified purchase

    This review is about the power: 850 W

    Very good, sturdy

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Dimitrios_Garavelis

    Verified purchase

    This review is about the power: 650 W

  • 5
    Hac6308

    Verified purchase

    This review is about the power: 650 W

  • 5
    theolem

    Verified purchase

    This review is about the power: 850 W

  • 5
    anastasis.bekos

    Verified purchase

    This review is about the power: 650 W

    • Cable management
    • Silent
    • Quality construction
    • Durability
    • Value for money
    • Number of connections
    • Operational stability
  • 5
    Stavros_Sideris

    Verified purchase

    This review is about the power: 650 W

  • 5
    fanisfin

    Verified purchase

    This review is about the power: 850 W

    • Cable management
    • Silent
    • Quality construction
    • Durability
    • Value for money
    • Number of connections
    • Operational stability
  • 5
    iliasagriogiannos

    Verified purchase

    This review is about the power: 850 W

  • 5
    teknik667

    Verified purchase

    This review is about the power: 850 W

  • 5
    FountasTech

    Verified purchase

    This review is about the power: 850 W

  • 5
    Himoros

    Verified purchase

    This review is about the power: 850 W

  • 5
    freaktmp

    Verified purchase

Description & Specifications

Power Management

  • Total power: 550W
  • AC input voltage: 100 - 240V
  • AC input frequency: 50/60Hz
  • Input operating current: 10A
  • Combined power (+3.3V): 100W
  • Combined power (+12V): 540W
  • Combined power (+5V): 100W
  • Combined power (-12V): 3.6W
  • Combined power (+5Vsb): 12.5W
  • Maximum output current (+3.3V): 20A
  • Maximum output current (+12V): 45A
  • Maximum output current (+5V): 20A
  • Maximum output current (-12V): 3.6A
  • Maximum output current (+5Vsb): 2.5A
  • Power protection features: Over current, Over voltage, Short circuit

Connectivity

  • Motherboard power connector: 20+4 pin ATX
  • Peripheral (Molex) power connectors (4-pin): 3
  • Motherboard power cable length: 550mm
  • Number of SATA power connectors: 6
  • Peripheral (Molex) power cable length: 690mm
  • PCI Express power connectors (6+2 pin): 2
  • PCI Express power cable length: 700mm
  • Cabling type: Semi-Modular

Performance

  • Purpose: PC
  • Power supply unit (PSU) form factor: ATX
  • 80 PLUS certification: 80 PLUS Gold
  • Bearing technology: Sleeve
  • MTBF rate: 100000h
  • Certifications: ISVcTUVus, TUV, CB, CCC, BSMI, CE, FCC, RoHS, WEEE, ErP Lot 6, REACH

Design

  • Product color: Black
  • Cooling type: Active
  • Fan diameter: 120mm
  • Number of fans: 1
  • On/off switch: YES

Environmental Conditions

  • Operating temperature range: 0 - 50°C

Package Contents

  • Cables included: AC, PCIe, Peripheral (Molex), SATA
  • Cable(s) included: YES

Weight and Dimensions

  • Width: 150mm
  • Depth: 140mm
  • Height: 86mm

Packaging Data

  • Package type: Box

Technical Details

  • Sustainability certificates: RoHS

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Power
550 W
Size
ATX

Size

Specifies the size and compatibility with the computer case. The most common types are ATX for standard cases, SFX and TFX for small or slim systems, and EPS for powerful setups or servers.

ATX
The most common power supply size, compatible with most mid and full tower cases.
Modularity
Semi Modular

Modularity

Describes the degree to which power cables are detachable. Modular power supplies allow for the use of only necessary cables, resulting in better aesthetics and airflow.

Semi Modular

Some cables are detachable from the power supply. 2.

Some cables are detachable from the power supply.


It helps with a more organized assembly with better aesthetic results and airflow.
Certification
80 Plus Gold
Fan Dimension
120 mm

Fan Dimension

The diameter of the fan in millimeters. The larger the fan, the more effective the cooling and the quieter the power supply operation. The most common size is 120mm, with some power supplies reaching up to 140mm.
Power Protection
Over Current Protection (OCP), Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP)

Power Protection

The various types of protection that the power supply has.

Over Current Protection (OCP)

Protects connected devices from excessive current intensity.

Over Power Protection (OPP)
Protects the power supply if its nominal power is exceeded.
Over Voltage Protection (OVP)

Protects connected devices from excessive voltage.

Short Circuit Protection (SCP)

Protects the power supply from short circuit.
Color
Black

ATX Version

ATX 3.1
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Reviews (15)

4.9
15
4.9
Review this product
  1. 14
  2. 1
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Cable management
  • Quality construction
  • Durability
  • Value for money
  • Operational stability
  • Silent
  • Number of connections
  • Ilias R.
    5
    Ilias R.

    Verified purchase

    This review is about the power: 850 W

    I have had it for about a year and a half, it hasn't shown any problems. Very high quality. I highly recommend it.

    Translated from Greek ·
    Did you find this review helpful?
  • agg67
    5
    agg67

    Verified purchase

    This review is about the power: 650 W

    I have no complaints so far, it was bought for around 60 anyway, in the long run it will show if it is good, otherwise very value for money and a good and quality power supply

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Jim Pal

    Verified purchase

    This review is about the power: 850 W

    I would buy it again

    Translated from Greek ·
    • Cable management
    • Quality construction
    • Durability
    • Value for money
    • Operational stability
    • Moderate noise
    • Number of connections
    Did you find this review helpful?
  • 4
    1 out of 3 members found this review helpful
    Leonidas_Sp

    Verified purchase

    This review is about the power: 850 W

    Very good, sturdy

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    Dimitrios_Garavelis

    Verified purchase

    This review is about the power: 650 W

  • 5
    Hac6308

    Verified purchase

    This review is about the power: 650 W

  • 5
    theolem

    Verified purchase

    This review is about the power: 850 W

  • 5
    anastasis.bekos

    Verified purchase

    This review is about the power: 650 W

    • Cable management
    • Silent
    • Quality construction
    • Durability
    • Value for money
    • Number of connections
    • Operational stability
  • 5
    Stavros_Sideris

    Verified purchase

    This review is about the power: 650 W

  • 5
    fanisfin

    Verified purchase

    This review is about the power: 850 W

    • Cable management
    • Silent
    • Quality construction
    • Durability
    • Value for money
    • Number of connections
    • Operational stability
  • 5
    iliasagriogiannos

    Verified purchase

    This review is about the power: 850 W

  • 5
    teknik667

    Verified purchase

    This review is about the power: 850 W

  • 5
    FountasTech

    Verified purchase

    This review is about the power: 850 W

  • 5
    Himoros

    Verified purchase

    This review is about the power: 850 W

  • 5
    freaktmp

    Verified purchase
