The G12 GC achieves 80 PLUS® Gold certification with 90% efficiency at 50% system load.
Description
Specifications

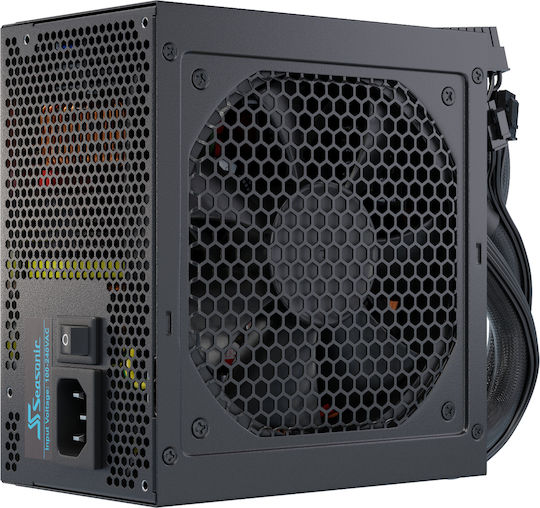

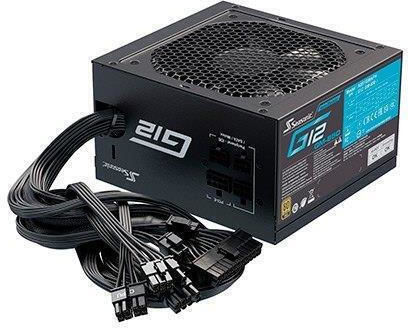

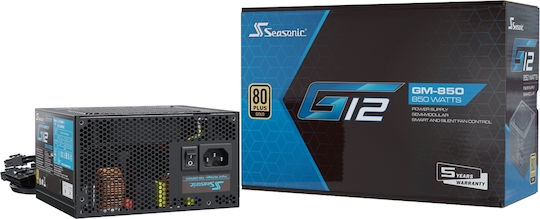

The Seasonic G12 GM series is primarily aimed at users looking for a quality power supply unit. It is available in the standard ATX form factor and in wattages that are more common for a PC system.
The Seasonic G12 GM-Series achieves the 80 PLUS® Gold standard, providing at least 87%, 90%, and 87% energy efficiency at 20%, 50%, and 100% operating loads respectively. This efficiency, combined with Active Power Factor Correction, allows the G12 GM power supply units to reduce energy waste, translating into energy cost savings for users.
80 Plus Gold
The G12 GC achieves 80 PLUS® Gold certification with 90% efficiency at 50% system load.
S2fc - Intelligent and Silent Fan Control
The intelligent thermal circuit is designed to find the optimal balance between the need to cool the components and the need to operate the power supply in the quietest possible manner.
Protection Technologies
- OPP (Over Power Protection): Function that shuts down the power supply when excessive power is drawn, generally between 110 and 140% of the advertised power.
- OCP (Over Current Protection): Protects connected devices from excessive current.
- OVP (Over Voltage Protection): Over voltage protection works similarly to UVP, but in the opposite way.
- SCP (Short Circuit Protection): Short circuit protection measures the resistance on each rail and will shut down when the resistance is lower than 0.1 Ω. Generally, this is combined with OPP, OCP, OVP, and UVP.

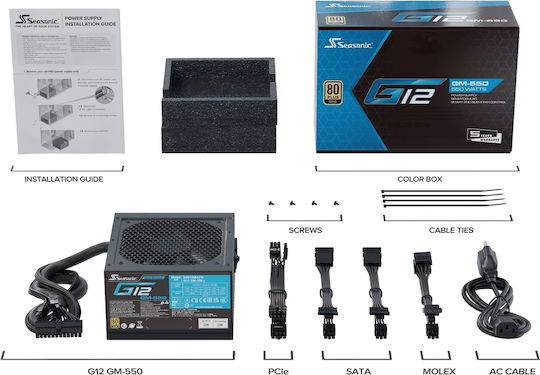

Connections
- 1 ATX Mainboard (20 or 24 pin and 4 pin)
- 3 6+2 pin PCI-Express
- 6 5 pin Serial ATA
- 3 4 pin IDE Peripheral Power Connector
- 2 4+4 pin +12V Power Connector
Compatibility with Graphics Cards & Processors
Nvidia
AMD
Dimensions
- Power
- 850 W
- Size
- ATX
- Modularity
- Semi Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Voltage Protection (OVP), Short Circuit Protection (SCP)
- Color
- Black
ATX Version
- ATX 3.1
- -
