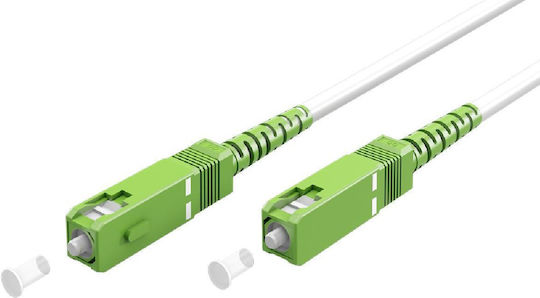

The Goobay 59598 fiber optic cable connects equipment via SC-APC connectors and is designed for FTTH, FTTB and FTTx connections. It is a singlemode OS2 cable with G657.A2 fiber and features 8° SC-APC connectors with ceramic ferrules.
The LSZH outer jacket has a diameter of approximately 3 mm, and the cable features kink protection and protective caps. The minimum bend radius is 30 mm.
- Type: Simplex fiber optic cable
- Transmission mode: Singlemode
- Fiber category: OS2
- Fiber type: G657.A2 glass
- Core diameter: 9 μm
- Fiber cladding diameter: 125 μm
- Connectors: Male SC-APC (8°) at both ends
- Ferrule: Ceramic
- Length: 10 m
- Color: White
- Outer jacket: LSZH
- Cable diameter: Approximately 3 mm
- Minimum bend radius: 30 mm
- Kink protection: Yes
- Wavelength: 1310 nm
- Transmission speed: Up to 100 Gbit/s
- Operating temperature: -40 °C to 85 °C
- Standards: IEC 60754-2, IEC 60332-1, IEC 61034
- Package contents: Protective caps
- Product Number
- 59598
- Type
- Optical Fiber
- Length
- 10 m
- Outdoor
- No
- Colour
- White
- Terminated
- Yes
- Flat
- No
- Fiber Optic Connectors
- SC-APC
