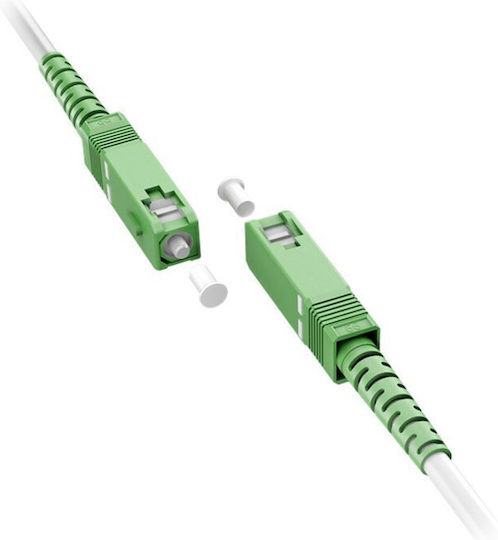

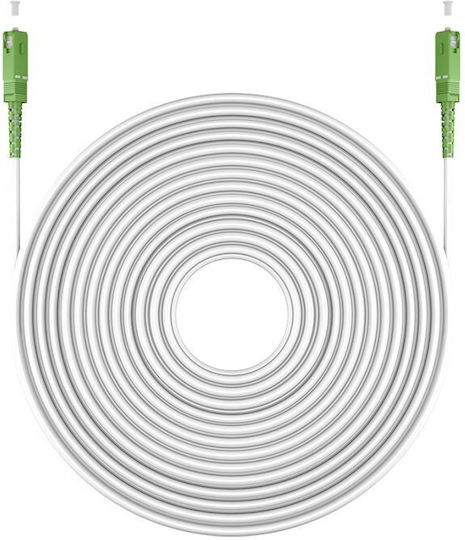

The Goobay 59594 fiber optic cable connects devices using male SC-APC connectors with ceramic ferrules. It is an OS2 single-mode cable with G657.A2 glass fiber, suitable for FTTH, FTTB, and FTTx connections.
The LSZH jacket has a diameter of approximately 3 mm, and the cable features kink protection and protective caps. It supports speeds of up to 100 Gbit/s, with a wavelength of 1310 nm and a minimum bend radius of 30 mm.
- Type: Simplex fiber optic cable
- Transmission mode: Single-mode (OS2)
- Connectors: Male SC-APC (8°) at both ends
- Connector ferrule: Ceramic
- Fiber core diameter: 9 μm
- Fiber cladding diameter: 125 μm
- Fiber type: G657.A2 glass
- Wavelength: 1310 nm
- Transmission speed: Up to 100 Gbit/s
- Cable jacket: LSZH, approximately 3 mm in diameter
- Kink protection: Yes
- Minimum bend radius: 30 mm
- Operating temperature: -40 °C to 85 °C
- Standards: IEC 60754-2, IEC 60332-1, and IEC 61034
- Package contents: Protective caps
- Product Number
- 59594
- Type
- Optical Fiber
- Length
- 1 m
- Outdoor
- No
- Colour
- White
- Terminated
- Yes
- Flat
- No
- Fiber Optic Connectors
- SC-APC
