The Pure Power 12 M has 80 PLUS Gold certification with exceptional efficiency up to 93.1%. As a result, lower energy consumption, lower cost, and above all, cooler and quieter operation. The Pure Power 12 M 1000W is always the right choice for silent systems and gaming computers!
80 PLUS GOLD
The Pure Power 12 M has 80 PLUS Gold certification with exceptional efficiency up to 93.1%. As a result, lower energy consumption, lower cost, and above all, cooler and quieter operation. The Pure Power 12 M 1000W is always the right choice for silent systems and gaming computers!
Fully Modular
Thanks to the modular design, all unnecessary cables in the system are omitted. The Pure Power 12 M simplifies cable management and routing for a tidy system. A smoother airflow results from the clear system layout, which means lower noise levels and temperatures inside the case.
ATX 3.0
The Pure Power 12 M is an ATX 3.0 power supply and features both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, as well as 6+2 pin PCIe connectors to support current generation GPUs. This makes the power supply extremely versatile and the ideal choice for today's powerful systems and those to come.
Reliable Operation
The Pure Power 12 M offers continuous power with 2 independent 12V rails. Even if the graphics card requires excessive power for a short period: The Pure Power 12 M 1000W easily handles power surges up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards.
LLC Topology
With LLC topology, the Pure Power 12 M provides the best voltage regulation and efficiency in its class. This makes it ideal for building or upgrading very quiet systems, as well as for gaming and multimedia creation computers.
Silent Operation
The ultra-quiet 120mm be quiet! fan regulates the temperature to achieve the best possible balance between efficient cooling and silent operation. The fan blades optimized for airflow reduce turbulence, allowing for best-in-class silent operation.

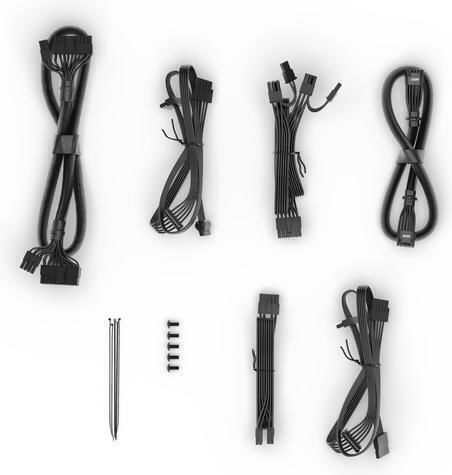

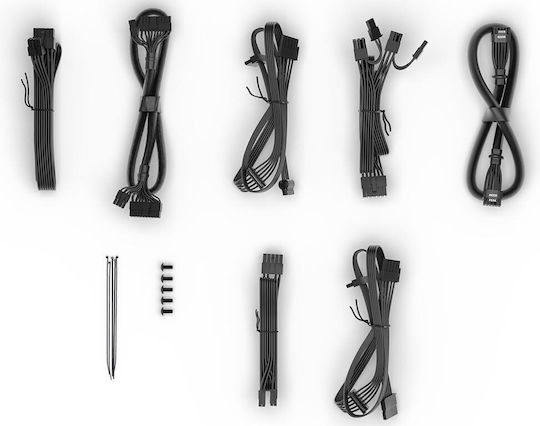

Wiring
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 1x PCIe -16pin power connector.
- 5x SATA power connectors for SSD or HDD hard drives
- 2x 4-pin Molex connectors for connecting additional peripherals
System Protection
The Pure Power 12 M protects your PC from over-power (OPP), over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-temperature (OTP) and short-circuit (SCP).
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 20A
- Line Current +5 V: 20A
- Line Current +12 V1: 36A
- Line Current +12 V2: 32A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A
Compatibility with Graphics Cards & Processors
Nvidia
AMD
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Surges & Inrush Protection (SIP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- Yes
