The Pure Power 12 M 1000W is 80 PLUS Gold certified with exceptional efficiency up to 93.1%. As a result, it offers lower energy consumption, lower costs, and above all, cooler and quieter operation. The Pure Power 12 M 1000W is always the right choice for silent systems and gaming computers!
80 PLUS GOLD
The Pure Power 12 M 1000W is 80 PLUS Gold certified with exceptional efficiency up to 93.1%. As a result, it offers lower energy consumption, lower costs, and above all, cooler and quieter operation. The Pure Power 12 M 1000W is always the right choice for silent systems and gaming computers!

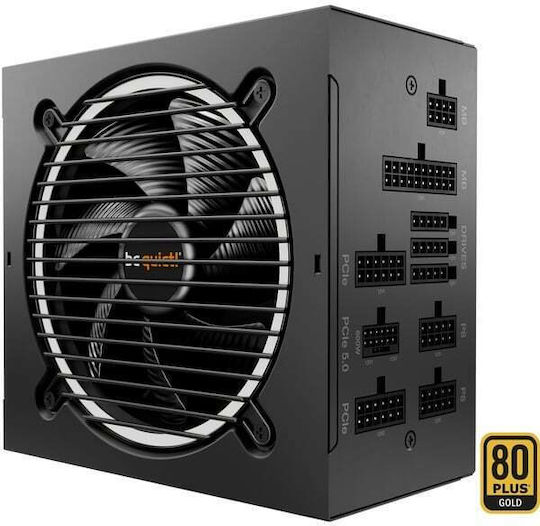

Fully Modular
Thanks to the modular design, all unnecessary cables in the system are omitted. The Pure Power 12 M 1000W simplifies cable management and routing for a tidy system. A smoother airflow results from the clear system layout, which means lower noise and temperatures inside the case.
ATX 3.0
The Pure Power 12 M 1000W is an ATX 3.0 power supply and features both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, as well as 6+2 pin PCIe connectors to support current generation GPUs. This makes the power supply extremely versatile and the ideal choice for today's powerful systems and those to come.
Reliable Operation
The Pure Power 12 M offers continuous power of 1000W with 2 independent 12V rails. Even if the graphics card requires excessive power for a short period: The Pure Power 12 M 1000W handles power surges up to twice its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
LLC Topology
With LLC topology, the Pure Power 12 M 1000W provides the best voltage regulation and efficiency in its class. This makes it ideal for building or upgrading very quiet systems, as well as for gaming and multimedia creation computers.
Silent Operation
The ultra-quiet 120mm be quiet! fan regulates the temperature to achieve the best possible balance between efficient cooling and silent operation. The fan blades optimized for airflow reduce turbulence, allowing for best-in-class silent operation.

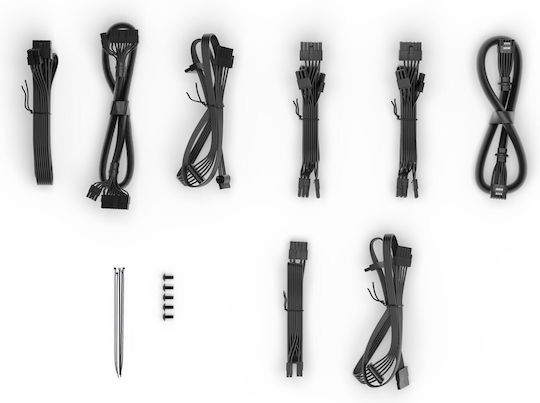

Wiring
- 1x ATX 20 + 4-pin motherboard power connector.
- 1x EPS/ATX12V 8 Pin (4+4) CPU power connector
- 4x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 1x PCIe -16pin power connector.
- 6x SATA power connectors for SSD or HDD hard drives
- 2x Molex 4-pin connectors for connecting additional peripherals
Protection Technologies
The Pure Power 12 M protects your PC from over-power (OPP), over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-temperature (OTP), and short-circuit (SCP).
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Intensity +3.3 V: 22A
- Line Intensity +5 V: 22A
- Line Intensity +12 V1: 46A
- Line Intensity +12 V2: 42A
- Line Intensity -12 V: 0.3A
- Line Intensity +5 Vsb: 3A
Dimensions
- Power
- 1200 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Surges & Inrush Protection (SIP), Under Voltage Protection (UVP)
- Color
- Black
ATX Version
- ATX 3.1
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
