The processor is based on the new Zen 5 (4nm FinFET) architecture, offering 8 cores and 16 threads with a base clock speed of 4.7 GHz that reaches up to 5.2 GHz Boost. It features 2nd Gen AMD 3D V-Cache with a total of 96MB L3 Cache, ensuring exceptionally low latency and a noticeable increase in FPS in the most demanding games.

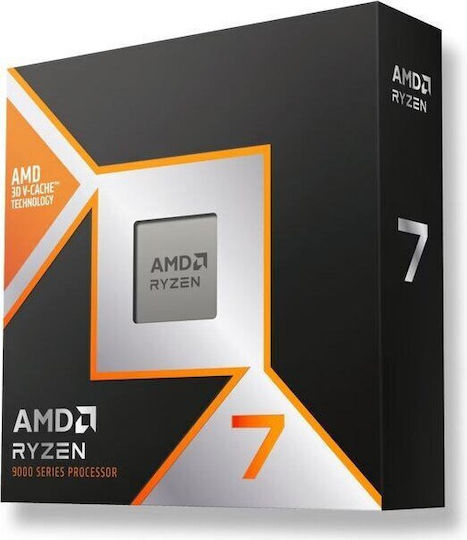

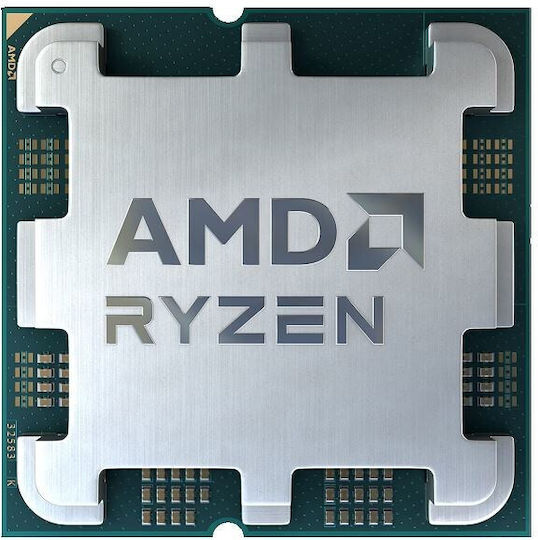

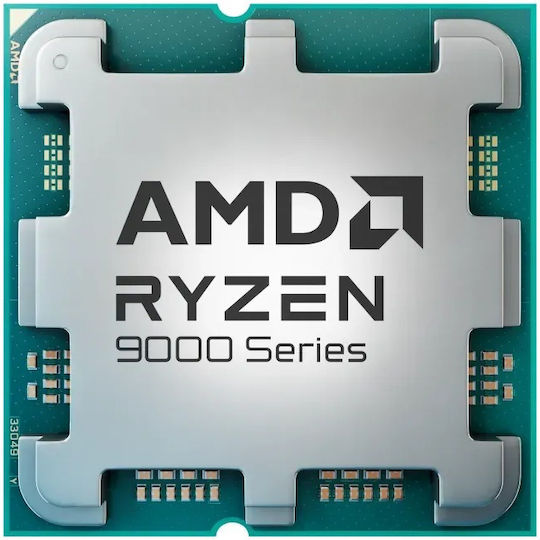

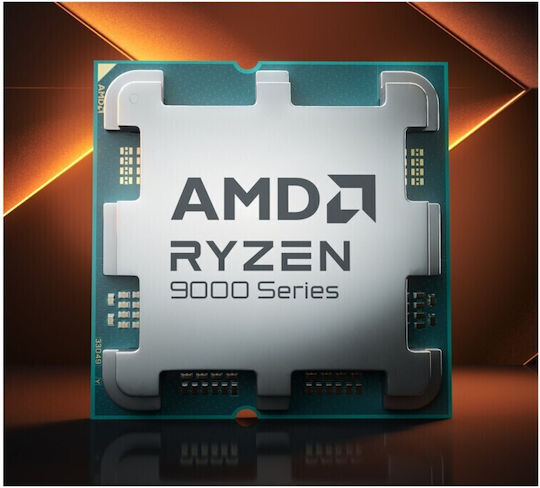

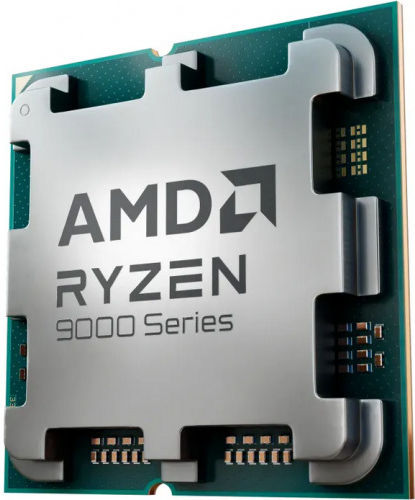

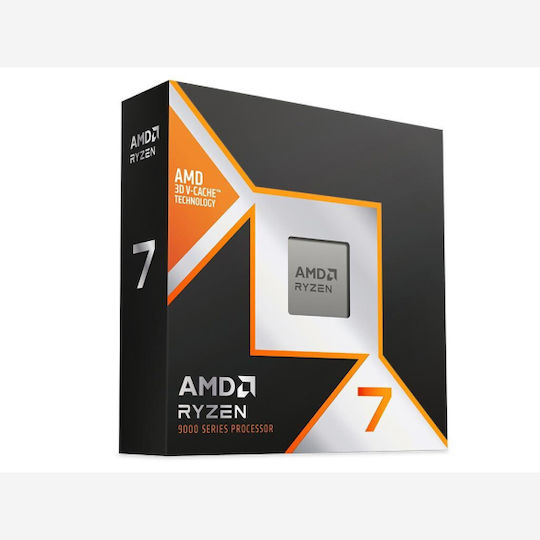

The AMD Ryzen 7 9800X3D is a high-end processor designed for the most demanding modern gaming. Built on the Zen 5 architecture using a 4nm manufacturing process, it features 8 cores, 16 threads, 96MB of L3 cache with 2nd Gen 3D V-Cache, DDR5 memory support, and PCIe 5.0 connectivity for the AM5 socket.
Zen 5 Architecture & 2nd Gen 3D V-Cache
The processor is based on the new Zen 5 (4nm FinFET) architecture, offering 8 cores and 16 threads with a base clock speed of 4.7 GHz that reaches up to 5.2 GHz Boost. It features 2nd Gen AMD 3D V-Cache with a total of 96MB L3 Cache, ensuring exceptionally low latency and a noticeable increase in FPS in the most demanding games.
Socket AM5 & DDR5 Platform
Designed for Socket AM5, it supports the latest technologies, including DDR5 memory (up to 256GB with ECC support) and PCIe 5.0 for high-speed graphics cards and NVMe SSDs. It is compatible with a wide range of chipsets, including X870E, X870, B850, X670E, B650E, and A620.
Unlocked for Overclocking & Precision Boost 2
The Ryzen 7 9800X3D is fully unlocked for overclocking, supporting AMD EXPO technology for easy one-click memory overclocking, as well as Precision Boost Overdrive (PBO) and Curve Optimizer. With AMD Ryzen Master software, users can fine-tune system performance.
Integrated AMD Radeon Graphics & Connectivity
Features integrated AMD Radeon Graphics (2 cores at 2200 MHz) with support for USB Type-C DisplayPort Alternate Mode for display output without a dedicated GPU. It also offers native USB 3.2 Gen 2 (10Gbps) ports and a total of 28 PCIe lanes (24 usable) for flexible expansion options.
Energy Efficiency & Thermal Performance

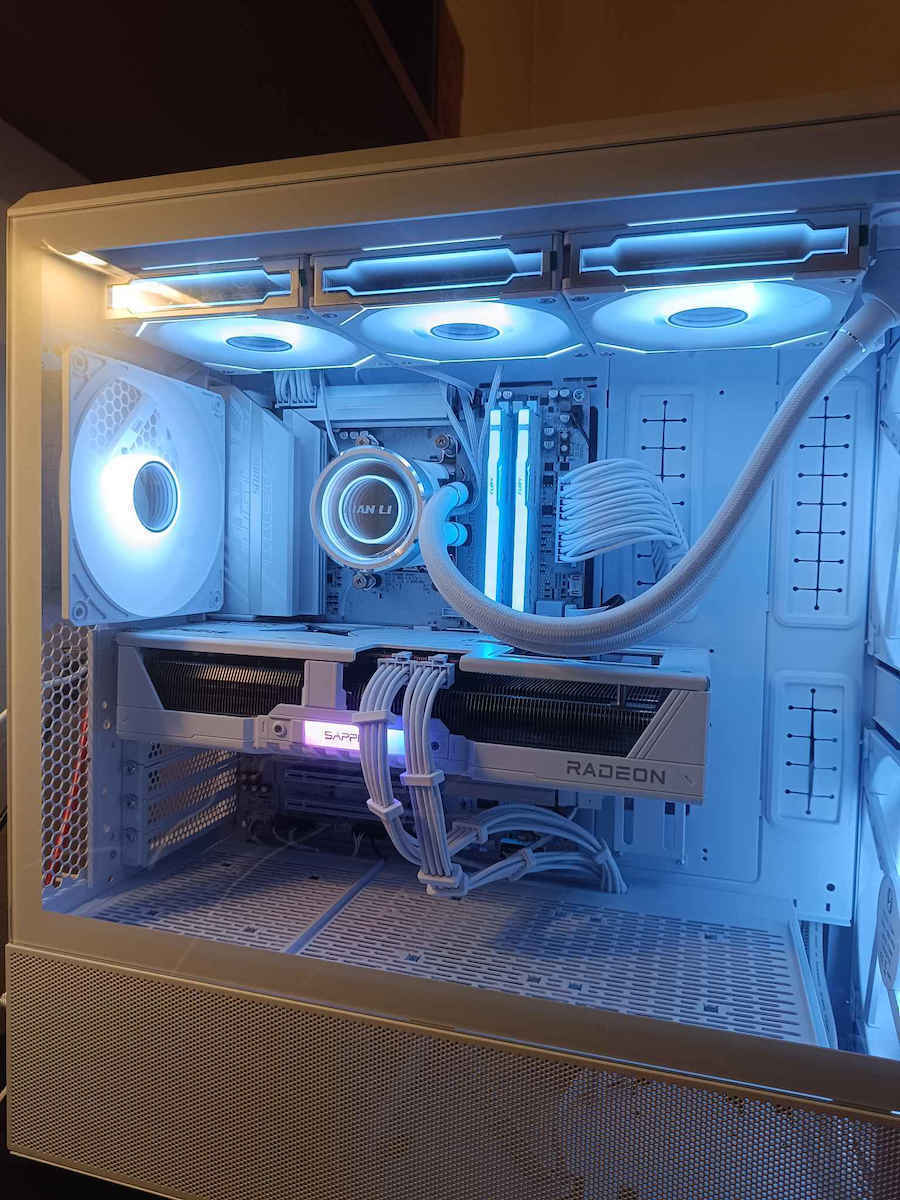

With a default TDP of 120W and a maximum operating temperature of 95°C (Tjmax), the processor combines high processing power with efficient power management. To maintain peak performance during extended gaming or content creation workloads, a liquid cooling system (Liquid Cooler) is recommended.
Main Specifications
- Year of Release
- 2024
- Family
- Ryzen 7
- Microarchitecture
- Zen 5
- Socket
- AM5
- Packaging
- Tray
- Compatible Chipset
- A620, X670E, X670, B650E, B650, X870E, X870
- Type
- High Performance
Performance
- Cores
- 8
- Threads
- 16
- Processor Frequency (Base Frequency)
- 4.7 GHz
- Max Processor Frequency
- 5.2 GHz
- Cache memory
- 96 MB
- Unlocked
- Yes
- Thermal Design Power (TDP)
- 120 W
Features & Functions
- Includes Heatsink
- No
- DDR4 Support
- -
- DDR5 Support
- Yes
- NPU Support
- -
