• High thermal performance
• Performance is displayed in kcal/h for supply temperatures of 90°C and return temperatures of 70°C
• The price of the body includes plugs, air vent, and brackets
• Test pressure: 13 bar
• Operating pressure: 10 bar
• Color RAL 9010
• Italian design

In panel radiators, the switch enters with one side of the body and has an external tube that connects the top with the bottom of the radiator.

The type of columns is represented by the number 22 (double column), which means it has 2 water-bearing columns and 2 welded manifolds to increase the heated surface.

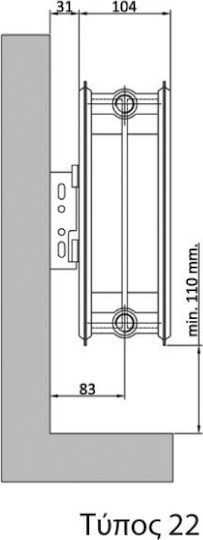

The total thickness of the body is 10.5 cm.

It is very important to make the right choice of the radiator according to the dimensions of your space. The sizing of radiators should be done by an engineer after studying the space and calculating losses. The wrong choice of radiator can lead to insufficient heating or excessive heating of the space, resulting in energy waste.

A practical and simple way to calculate the required calories yourself is to multiply the height, width, and length of your room, in meters. Then multiply the result by the number 50, which represents an approximation of possible losses.

However, this calculation method is indicative and does not replace the study that an engineer will do, which will be completely accurate.
