- More speeds
- Impact drilling
- Right and left rotation
- Electronic system
- Auto-Lock
- Soft grip
- Light
Functions
- More speeds
- Impact drilling
- Right and left rotation
- Electronic system
- Auto-Lock
- Soft grip
- Light
Drill Diameter
Drilling diameter in wood, max: 19 mm
Drilling diameter in steel, max: 10 mm
Drilling diameter in masonry, max: 10 mm
Specifications
- Torque, max. (hard screwdriving applications): 30 Nm
- Torque, max. (soft screwdriving applications): 13 Nm
- No-load speed (1st gear/2nd gear): 0 – 380 / 0 – 1,300 min-1
- Max. impact rate: 19,500 min-1
- Chuck clamping range, min./max.: 1 / 10 mm
- Drill spindle thread: 1/2"
- Battery voltage: 12 V
- Weight with battery: 1 kg
- Torque settings: 20+1
- Length: 189.0 mm
- Height: 175.0 mm
- Cell type: Lithium-ion
At a glance
- Recently developed 2-speed planetary gearbox for powerful screwing and drilling tasks
- High-quality Auto-Lock 10 mm quick-change chuck.
- Unique Bosch Premium lithium-ion technology for 400% longer lifespan and unbeatable battery runtime.
- Bosch Electronic Cell Protection (ECP): Protects the battery from overloading, overheating, and deep discharge.
- Integrated light (LED) for illuminating the work area
- Motor brake for precise work during continuous screwing.
- Bosch Hyper Charge: Thanks to rapid charging, the batteries are already 75% charged in half the charging time.

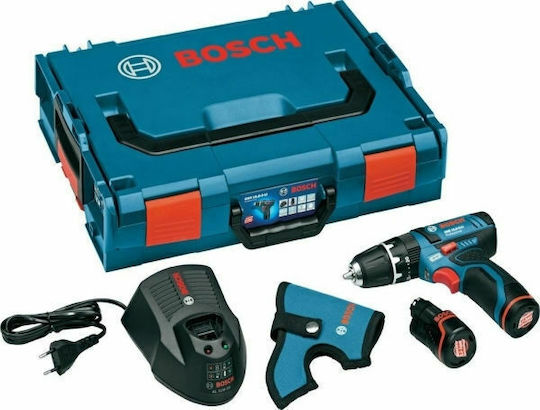

Delivery Materials
- 1/2 L-BOXX insert, tool and charger (2 608 438 082)
- 1/2 L-BOXX insert, accessories (2 608 438 004)
- L-BOXX 102 (2 608 438 691)
- Fabric case (1 600 Z00 01U)
Product Guides
Product Details
- Type
- Drill Driver
- Power Source
- Battery
- Brushless
- No
Battery Features
- Number of Batteries
- 2
- Battery Voltage
- 12 V
- Battery Capacity
- 2 Ah
- Secondary Battery Charge Ah
- 2 Ah
- Compatible Battery Type
- Bosch GBA 12V, Bosch GBA 10.8V
Drilling Abilities
- Steel Ø
- 10 mm
- Wood Ø
- 19 mm
- Cement Ø
- 10 mm
Features & Functions
- Maximum Motor Speed
- 1300 rpm
- Speed Adjustment
- Yes
- Maximum Torque
- 30 Nm
- Maximum Number of Hits
- 19500 bpm
- Torque Adjustment
- Yes
- Percussive
- Yes
- Angle
- No
- Interchangeable Head
- No
- Reception
- Quick Change
- Maximum Chuck Diameter
- 10 mm
- Net Weight
- 825 gr
- Weight (with Battery)
- 1000 gr
Extra Features
- Carrying Case
- Hard Case
- Handle Included
- No
- Integrated Light
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
