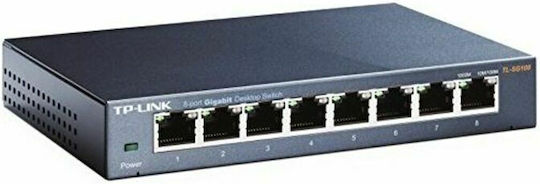

The unmanaged Layer 2 TP-LINK TL-SG108 v1 Switch connects devices through 8 RJ45 ports with automatic speed negotiation at 10/100/1000 Mbps. It supports Auto-MDI/MDIX, QoS (IEEE 802.1p) and IGMP snooping, and works without configuration. Green Ethernet technology adjusts power consumption according to the connection status and cable length, saving up to 72%.

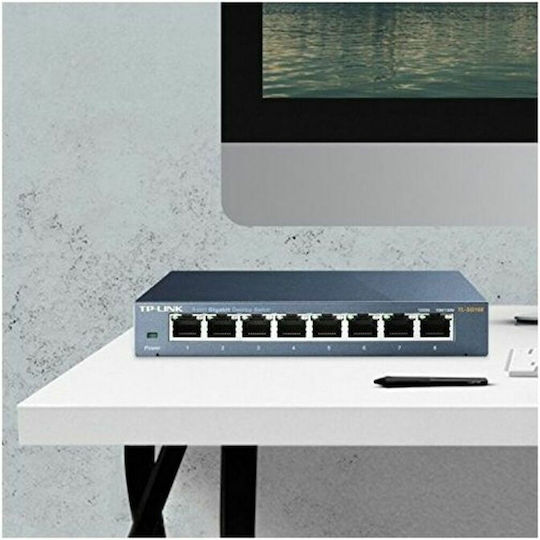

The metal housing allows it to be placed on a desk or mounted on a wall. The IEEE 802.3x standard supports flow control during data transmission.
- Type: Unmanaged Layer 2 switch
- Ethernet ports: 8 RJ45, 10/100/1000 Mbps
- SFP ports: 8
- Switching capacity: 16 Gbps
- MAC address table: 4,000 entries
- Supported features: Auto-Negotiation, Auto-MDI/MDIX, QoS (IEEE 802.1p), IGMP snooping and IEEE 802.3x flow control
- Energy savings: Up to 72%
- Housing: Metal
- Mounting: Desk, wall or rack
Network Specifications
- Type
- Unmanaged
- Layer
- L2
- PoE
- No
Technical Specifications
- Ethernet connections
- 8 Port
- Ethernet Speed
- 1000 Mbps, 100 Mbps
- SFP connections
- 8 Port
- Switching Speed
- 16 Gbps
- MAC Address Table
- 4000 entries
- Rack mounting
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
