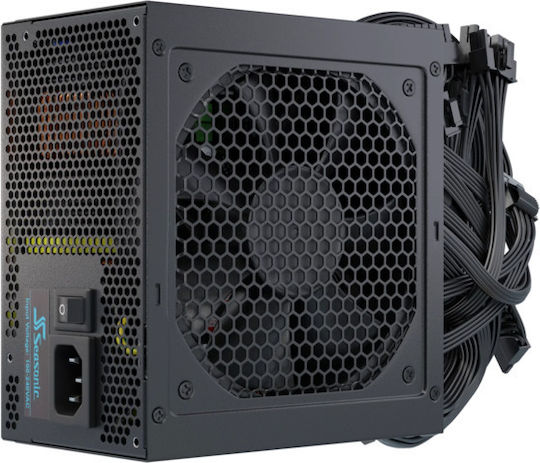

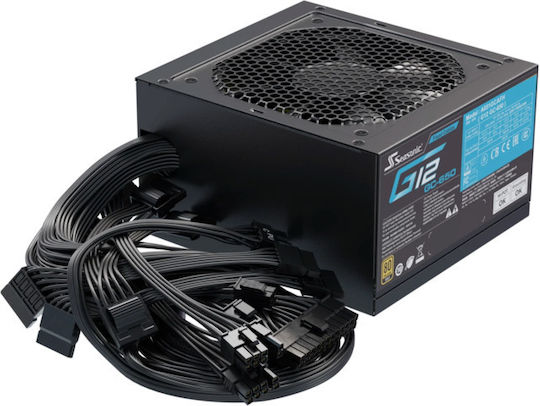

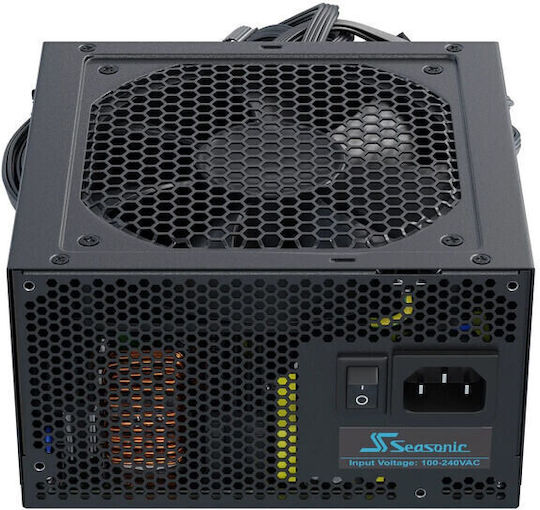

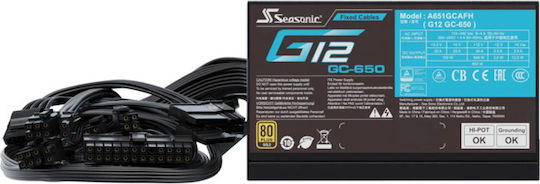

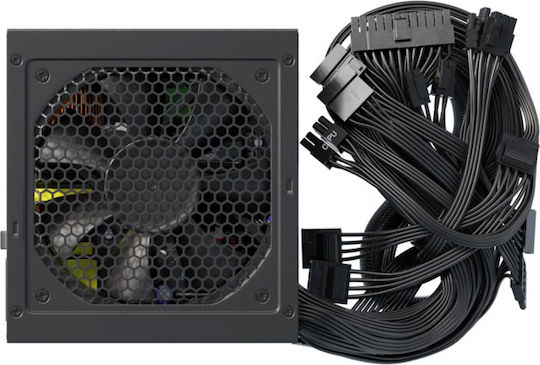

Seasonic G12 GC 650W Black Computer Power Supply Full Wired 80 Plus Gold

Key features:

  • Type: ATX
  • Type: Active PFC
  • Fan Dimension: 120 mm
  • Dimensions: 150mm x 140mm x 86mm
  • Protection: OCP/OVP/UVP/OPP/SCP/OTP
See full description
  • Certification 80 Plus Gold
  • See all

User Manual

Description

Description

80 PLUS GOLD

The G12 GC achieves 80 PLUS Gold certification with 90% efficiency at 50% system load.

Smart / Silent Fan Control

The intelligent temperature control circuit is designed to find the optimal balance between the need to cool the components and the need for the power supply to operate in the quietest possible manner.

Protection Technologies

The Seasonic G12 GC protects your PC from over power (OPP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit (SCP).

Loads

  • Operating Voltage: 100-240V

Maximum Load:

  • Line Current +3.3 V: 15A
  • Line Current +5 V: 15A
  • Line Current +12 V: 54A
  • Line Current -12 V: 0.3A
  • Line Current +5 Vsb: 3A

Wiring

  • 1x ATX 20 + 4-pin motherboard power connector.
  • 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
  • 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
  • 6x SATA power connectors for SSD or HDD hard drives
  • 3x Molex 4-pin connectors for connecting additional peripherals

Manufacturer

See full description

Specifications

Specifications

Product Guides

User Manual

Dimensions

Power
650 W
Size
ATX
Modularity
Full Wired
Certification
80 Plus Gold
Fan Dimension
120 mm
Color
Black

ATX Version

ATX 3.1
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
