The G12 GC achieves 80 PLUS Gold certification with 90% efficiency at 50% system load.
80 PLUS GOLD
The G12 GC achieves 80 PLUS Gold certification with 90% efficiency at 50% system load.
Smart / Silent Fan Control
The intelligent temperature control circuit is designed to find the optimal balance between the need to cool the components and the need for the power supply to operate in the quietest possible manner.
Protection Technologies
The Seasonic G12 GC protects your PC from over power (OPP), over voltage (OVP), under voltage (UVP), over current (OCP), over temperature (OTP), and short circuit (SCP).
Loads
- Operating Voltage: 100-240V
Maximum Load:
- Line Current +3.3 V: 15A
- Line Current +5 V: 15A
- Line Current +12 V: 54A
- Line Current -12 V: 0.3A
- Line Current +5 Vsb: 3A

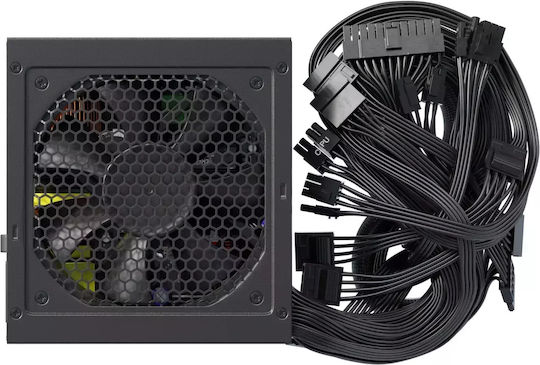

Wiring
- 1x ATX 20 + 4-pin motherboard power connector.
- 2x EPS/ATX12V 8 Pin (4+4) CPU power connectors
- 2x PCIe 6+2 graphics card power connectors, to take advantage of modern GPUs in combination with your PC's capabilities
- 6x SATA power connectors for SSD or HDD hard drives
- 3x Molex 4-pin connectors for connecting additional peripherals
Product Guides
Dimensions
- Power
- 750 W
- Size
- ATX
- Modularity
- Full Wired
- Certification
- 80 Plus Gold
- Fan Dimension
- 120 mm
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
